Pipe Prefabrication Length Measuring Machine - China

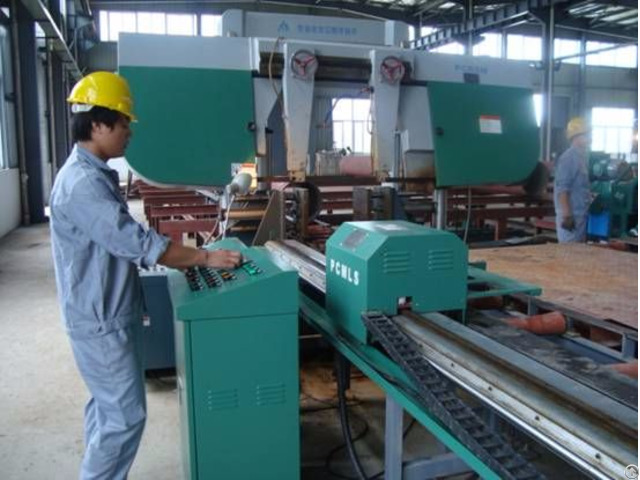

Pipe Cutting Length-Measuring System

Model: PCMLS-24A

Performance features

This system can be equipped on the Fixed-type Highly-efficient Pipe Cutting & Beveling Machine and Band Saw Machine if required so as to fix the pipe length and cut it and the process of length-measuring is unnecessary then.

A mechanical length-measuring device is adopted in this system to increase the accuracy and reliability.

It is control with PLC touch screen; firstly, the gear teeth driven by a motor move the length measuring arm to the location of the defined length, and the pipe stops when it contacts the contact point on the length measuring arm; then the length that the pipe extending out of the cutter of the beveling machine is just the length for cutting the pipe.

Technical parameters

Pipe diameter applicable: DN50～600(φ60～610)

Line length: 7M (or depend on the situation)

Moving speed: 0.5～14m/min

Sizing length: 6m (or depends on the situation)

Length error: ≤2mm

Pressure of Gas Power: 0.6Mpa

Measuring Method: mechanically

Control System: PLC VF control and Touching Screen with man-machine interface
