Production Process Of Organic Fertilizer Disc Granulation - China

Process advantages of disc granulation:

The disc granulation process has short production process, simple structure, low investment, and easy operation, which is more suitable for small and medium-sized enterprises.

The raw materials for production have a wide range of adaptability: nitrogen sources include urea, ammonium chloride, ammonium sulfate, ammonium bicarbonate, etc.

Phosphorus sources are: ordinary calcium, heavy calcium, monoammonium phosphate, diammonium phosphate, calcium magnesium phosphate, etc.

Potassium sources include potassium chloride and potassium sulfate.

It can produce various series of products such as inorganic compound fertilizer, organic fertilizer, organic (inorganic) compound fertilizer, bio-organic fertilizer, etc., with nutrients ranging from 20% to 48% of nitrogen, phosphorus and potassium.

Main equipment of organic fertilizer disc granulation production line:

1 - Automatic batching system: The automatic batching system is mainly composed of a feeding system, a weighing device, a silo, and a conveyor belt.

And the static batching system has both the speed of dynamic batching and the accuracy of ordinary static batching (0.2%).

2 - Disc mixer: The mixer is energy-saving and electricity-saving, small in size, fast in mixing, and capable of continuous work.

It is especially suitable for urban and rural construction projects.

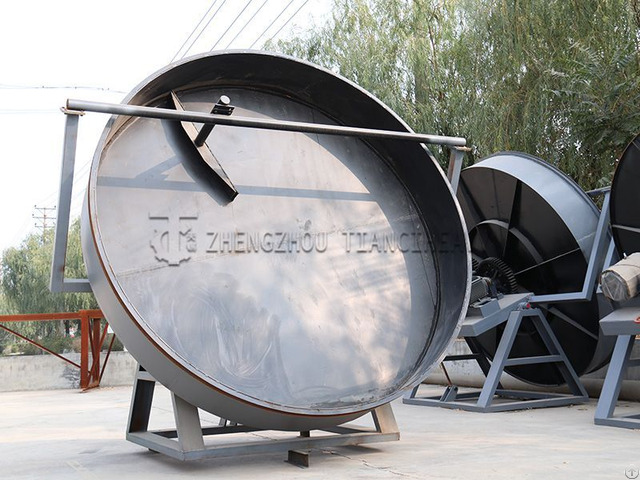

3 - Disc pelletizer: This series of disc pelletizer is a new type of inclined disc pelletizing equipment: the pelletizing rate can reach more than 90%.

The reducer and the motor are driven by a flexible belt, which can start smoothly, reduce the impact of the buffer, and improve The service life of the device.

4 - Drying machine: This machine has the characteristics of beautiful appearance, simple operation, uniform drying, convenient maintenance, etc.

The product is spread all over the country.

5 - Chain crusher: In the crushing process, the high-strength hard alloy chain plate with synchronous speed is adopted, the inlet and outlet are designed reasonably, the crushed material is uniform, not easy to stick to the wall, and it is easy to clean.

6 - Roller screen: This machine adopts a combined screen, which is easy to repair and replace.

Its structure is simple, easy to operate, and stable in operation.

It is an ideal equipment in the production of compound fertilizer.

7 - Coating machine: The main machine adopts polypropylene lining or acid-resistant stainless steel.

This equipment is specially designed on the internal structure according to the process requirements, and it is an effective special equipment for compound fertilizer.

8 - Packing scale: The packing scale is mainly composed of automatic quantitative packing scale (consisting of storage hopper, feeder, weighing and clamping bag, kneading mechanism, computer control, pneumatic execution part, etc.

) and optional parts (conveyor, sewing machine, etc.

) Machine/heat sealing machine).

Spiral feeding is used, and the material is forced out by the feeding mechanism.

9 - Cyclone dust collector: mainly used for pre-dust removal and material separation and recovery of high-concentration dust.

For the collection and separation of coarser particles above 5-10um, the purification rate is high.

It has the characteristics of simple structure, easy installation, maintenance and management, low cost and operating cost, small floor space, etc.

10 - Conveyor: suitable for coal, metallurgy, mines, chemicals, building materials, docks, warehouses, construction sites, etc.

to transport bulk materials or bag-like items, especially suitable for use in fertilizer plants, cement plants and other environments that require manual loading, Saving a lot of personnel.
