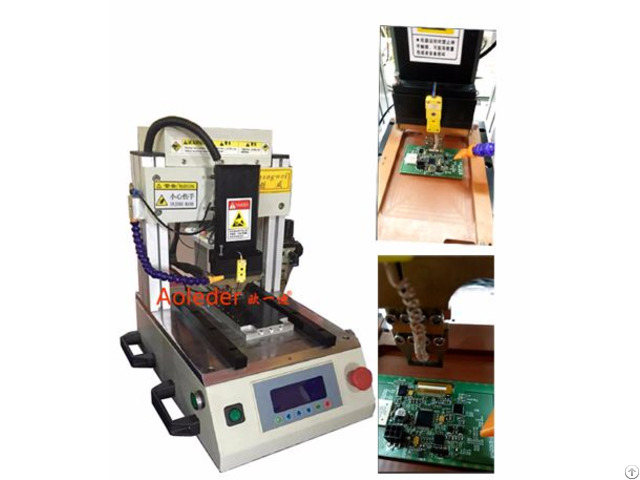

Pulse Heat Bonding Machine For Ffc Fpc To Pcb - China

Description:

Hot bar soldering is extremely effective in bonding components and parts that are dissimilar and difficult to unite.

Several examples are listed above, but there are many other soldering situations that call hot bar reflow soldering system.

This technology, also known as pulse bonding, differs from traditional soldering since the reflow process uses thermode technology, which is based on rapid reflow by pulse heating.

This procedure allows materials with low temperature resistance to be soldered at high lead-free temperatures without damage to the flex.

It selectively solders parts by heating them to a temperature that's high enough to cause their adhesive or solder to melt and then re-solidify to form a permanent bond.



Specifications for Soldering Machine:

Data lines Link welding machine

1 - Accurate Tin press, not drag

2 - Accurate heat

3 - Fine-pitch positioning

4 - Precision

Technology Parameters:

Model: CWPP-1S

Max.

Working Area: 200mm X 260mm

Fixture: 1 set

working air pressure: 0.45-0.7Mpa

Temperature setting: 20-500°C

Temperature precision: ±2°C

hot-pressing time: 1-99 s

force head pressure: 0.1-0.6 MPa

voltage: 110V/220V

Size: 620mm X 690mm X 570mm

Weight : 90Kg

momentary welding Power : 2000W Detailed Product Description:

1 - For electronics, cell phones, computers, PCB, FPC (flexible printed circuit board)

2 - Mold make of SKD-11 Steel, Blade is SKD-9(From Japan), Rigorous Job Technical Characteristics:

1 - Structural precision, the load evenly, to eliminate internal stress

2 - Safe, easy to operate

3 - Electronic component won't short circuit.

Features for Soldering Machine:

1 - Closed Loop PID temperature control with visible LED display

2 - LCD display programmable pressure switch for precise force control

3 - Each heating cycle is triggered by a real time pressure sensor

4 - Floating thermode ensures consistent pressure and heat transfer

between the thermode head and the parts to be joined

5 - Silicon rubber can be fitted in bonding Heat Seal Connectors

between LCD and PCB

6 - Standard workpiece holder is mounted on a linear guideway and

designed to allow for easy changeover and repeatable operation

7 - Parts registration is adjusted by micrometer and secured by vacuum

lock

8 - Optional CCD system for fine pitch component.

Engineer Overseas Trainning for Customers:

1 - Engineer overseas tranning for customers

2 - Promise day technical support services

3 - Limit the handling of complaints, half an hour back to customers

4 - Reliable machine maker, we get Experts--15, each one got over six years experience, equipment quality will be satisfying.
