Round Position Glue Dispenser - China

price: contact company for price

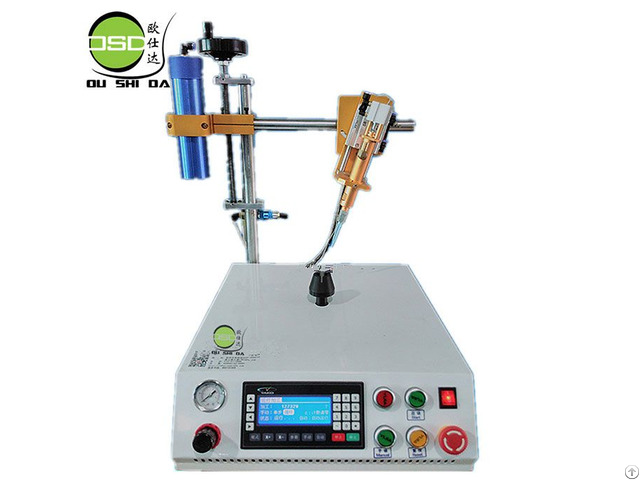

Round position glue dispenser

Hot Melt Glue Machine With Piston Pump

Hot Melt Glue Machine

piston pump hot melt adhesive machine supplier

Specifications single station four-station eight locations

working station the th cycles to all

repeatability ±0.02mm

drive system Step motor + gear

Working table turning diameter 220mm

capacity 2 seconds /

Programm method touch screen

Program recording capacity 100 sets, each set of 4000point (support usb disk copy))

Maximum speed of rotation 1080 degrees/SEC

· Air demand requirements 0.4 0.6 Mpa pressure

input power AC220V±10%;800W

work environment Temperature: 0 ~ 40 ℃ humidity: 20-90%

boundary dimension 450*500*600mm

Ontology is important (Kg) 24Kg

Characteristics of the piston pump hot melt adhesive machine supplier

Convenient and practical operation

1 - According to product size and glue fluidity, the glue discharge velocity and moving speed can be adjusted, rotation Angle can be adjusted, and the wire drawing rotation Angle can be prevented;

2 - Easy to change up and down but accurate positioning;

3 - The time can be adjusted according to the operation process to achieve the cycle work.

Efficient, high quality and stable

1 - Take bulb bulb glue as an example, the efficiency of a machine is two to three people, which not only improves the efficiency of the enterprise, but also reduces the cost.

2 - Stable operation of the machine and uniform and stable glue production ensure the consistency of products, and improve the market competitiveness of enterprises and products.

3 - Fully automatic quantitative positioning and back suction function: accurate glue extraction and accurate positioning; The process of ordering a good product to go to another product will not lead to the leakage of glue space, which not only saves the glue but also does not dirty the machine table.

Strong universality:

Not only all bulb lamps, spotlights, lamp cups and lamps can be used, but also all round products that need to be coated with glue.

Suitable for industry: ball bubble lamp horn/motor/watch and other round products adhesion, packaging, coating, coating, etc.

Suitable for glue: glass glue, silicone rubber, silicone rubber, red glue, yellow glue, silver, uv curing glue, lubricating oil, epoxy resin, silicone resin and other materials


Company Contact:


  • Phone: 0512-65564669

  • Address: No.12 Hucundang Rd,Caohu Industrial Park, Xiangcheng District,Suzhou, Jiangsu, China , Suzhou , Jiangsu , China

  • Email: Email


Published date: October 17, 2018

  • Business Description: Suzhou Oushida Hot Melt Machinery Equipment Co., Ltd was founded in June 2003, which is the largest technological joint venture specialized in hot melt glue machine research, development, production and sales.

    We have many branches in China to provide timely and quality services for our customers.

    Now Oushida has become a famous brand in China.

    After many years' persistant efforts, we have launched a lot of hot melt glue machine, hot melt adhesive gun, hot melt hose, hot melt adhesive box sealing machine, hot melt adhesive sealing machine, hot melt adhesive spraying equipment.

    It is widely used in sanitary products, air filter cartridge, non-woven fabric composite, footwear, printing, product assembly, clothing, dry paste, packaging industry, coating composite industry, automotive industry, book binding and other industries.

    We have improved the quality management system, And constantly strive for excellence in quality, to provide first-class products.

    Our products have acquired the ISO9001: 2008 international quality systerm.

    We have a group of mechanical industrial automation computer management professionals who has years of practical experience, and to improve the quality assurance system throughout the whole process of manufacturing, installation, commissioning, to ensure high quality products.

    Perfect processing and testing facilities.

    Put an end to unqualified products.
