S And A Air Cool Process Chiller For Welding Cell Of Metal Stamping - China

S&A air cool process chiller for welding cell of metal stamping

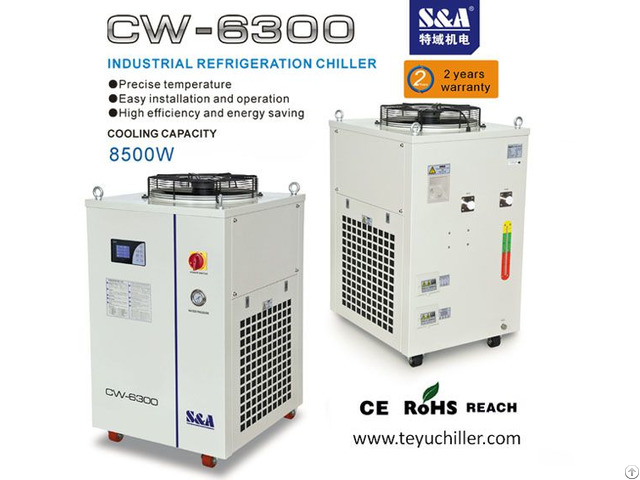

S&A CW-6300 series is air cool process chiller, with intelligent temperature control, completed configuration, perfect protection and alarm system.

CW-6300 chiller is fit for cooling welding cell of metal stamping, it is popular for its 2 temperature control modes as constant temperature and intelligent temperature control.

Since January 2016, the warranty period of S&A chiller has extended to 2 years.

S&A laser chiller CW-6300 features

1 - 8500W cooling capacity; optional environmental refrigerant;

2.

±1℃ precisely temperature control;

3 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions;

with various setting and display functions;

4 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,

water flow alarm and over high / low temperature alarm;

5 - Multiple power specifications; CE approval; RoHS approval;

6 - Long working life and simple operation;

Model CW-6300AN CW-6300BN CW-6300EN

Voltage AC 1P 220V AC 1P 220V AC 3P 380V

Frequency 50Hz 60Hz 50Hz

Current 3~20 A 3~20 A 2~6A

Compressor power 2.8KW 2.7KW 2.6KW

3.73HP 3.6HP 3.46HP

Refrigeration capacity 28498Btu/h 27850Btu/h 27986Btu/h

8.35KW 8.16KW 8.2KW

7181Kcal/h 7017Kcal/h 7052Kcal/h

Refrigerant R-22 / R-410a

Refrigerant charge 2150g 2100g 2350g

Precision ±1℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.37~1.1KW

Tank capacity 45L

Inlet and outlet Rp1"

Max.

lift 28-53M

Max.

flow 70-116L/min

N.

W 150Kgs

G.

W 163Kgs

Dimension 83 x 65 x 117cm (L x W x H)

Package dimension 95 x 85 x 140cm (L x W x H)

Note: the specification of water pump is selected according to different application; other electric sources can be customized.
