S And A Air Cooled Water Chiller Of 3kw Cooling Capacity - China

S&A air cooled water chiller of 3KW cooling capacity

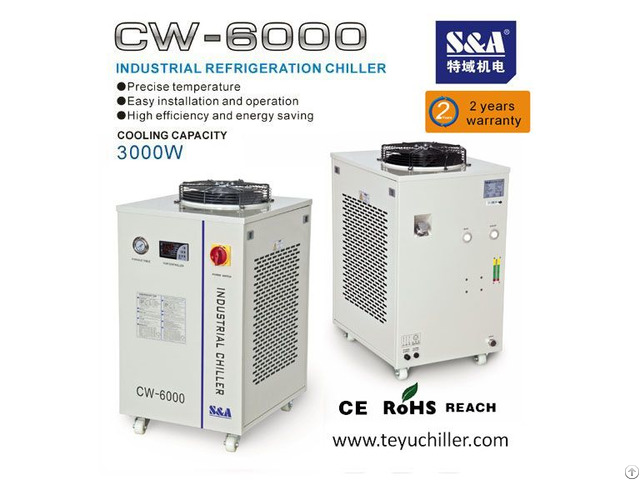

CW-6000 air cooled water chiller with compressor refrigeration is developed and produced by S&A company of China.

CW-6000 water chiller has 3000W cooling capacity with ±0.5℃ stability, it has 2 temperature control modes as constant temperature and intelligent temperature control.

Under intelligent mode, the water temperature is adjusted according to ambient temperature.

Since January 2016, the warranty period of S&A chiller has extended to 2 years.

Water chiller parameter:

Model CW-6000AH CW-6000BH CW-6000DH CW-6000AI CW-6000BI CW-6000DI CW-6000AN CW-6000BN CW-6000DN

Voltage 220V 220V 110V 220V 220V 110V 220V 220V 110V

Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz

Current 1~4.5A 1~10A 1.5~5.5A 1.5~10.5A 2~6A 2~11A

Compressor power 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW 0.965KW 0.895KW 1.12KW

1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP 1.28HP 1.22HP 1.52HP

Refrigeration capacity 10286Btu/h 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h 10286btuh 9502Btu/h 10724Btu/h

3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW 3.015KW 2.785KW 3.145KW

2592Kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395kcal/h 2711Kcal/h 2592kcal/h 2395Kcal/h 2711Kcal/h

Refrigerant R-22/R-410a

Refrigerant charge 800g 750g 650g 800g 750g 650g 800g 750g 650g

Precision ±0.5℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.05KW 0.1KW 0.37~0.75KW

Tank capacity 15L

Inlet and outlet Rp1/2"

Max.

lift 12M 25M 28~53M

Max.

flow 13L/min 16L/min 70L/min

N.

W 60Kgs 72Kgs

G.

W 70Kgs 82 Kgs

Dimension 67 X 47 X 89 cm (L X W X H)

Package dimension 74 X 60 X 109 cm(L X W X H)

CONTACT S&A

TEL: +86-20-89301885, FAX: +86-20-84309967

SKYPE: teyuchiller

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year, we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad, and export rate reaches above 60%.

Company Contact:

• Posted By: GUANGZHOU TEYU ELECTROMECHANICAL CO., LTD

• Phone: 86-20-89301885

• Address: No.50, Zhongchuang Road, Zhongcun town, Panyu District, Guangzhou, China, Guangzhou , Guangzhou , China

• Email:

• Website: https://www.teyuchiller.com

• Business Description: Founded in 2002, Guangzhou Teyu Electromechanical Co., Ltd. has established two chiller brands: TEYU and S&A.

  With 21 years of industrial chiller manufacturing experience, our company is recognized as a cooling technology pioneer and reliable partner in the laser industry.

  TEYU S&A Chiller delivers what it promises - providing high performance, highly reliable and energy efficient industrial water chillers with superior quality.

  Our recirculating water chillers are ideal for a wide variety of industrial applications.

  And for laser application in particular, we develop a complete line of laser water chillers, ranging from stand-alone units to rack mount units, from low power to high power series, from ±1℃ to ±0.1℃ stability technique applied.

  We have been helping customers in more than 100 countries to solve overheating problems in their machines with our constant commitment to stable product quality, continuous innovation and understanding of customer needs.

  Operating with the latest technology and advanced production lines in 25,000㎡ ISO-qualified production facilities with 400 employees, our production capacity now reaches 120,000+ units per year.

  All TEYU S&A industrial water chiller systems are REACH, RoHS and CE certified.
