S And A Brand Cnc Spindle Chiller Cw 6200 - China

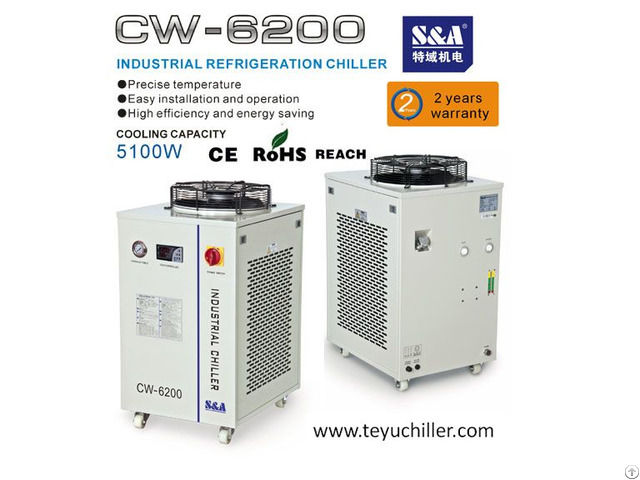

S&A brand CNC Spindle chiller CW-6200

Water chiller CW-6200 is developed and produced by S&A company of China.

It is fit for cooling CNC spindle and has 5.1KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; Since January 2016, the warranty period of S&A chiller has extended to 2 years.

Chillers CW-6200 parameter:

Model CW-6200AH CW-6200BH CW-6200AI CW-6200BI CW-6200AN CW-6200BN

Voltage 220V 220V 220V 220V 220V 220V

Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz

Current 1~8.2A 1~8A 1.5~8.7A 1.5~8.5A 2~9.2A 2~9A

Compressor power 1.68KW 1.645KW 1.68KW 1.645KW 1.68KW 1.645KW

2.28HP 2.24HP 2.28HP 2.24HP 2.28HP 2.24HP

Refrigeration capacity 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h 17510Btu/h 17640Btu/h

5.13KW 5.17KW 5.13KW 5.17KW 5.13KW 5.17KW

4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h 4420Kcal/h 4446Kcal/h

Refrigerant R-22/R-410a

Refrigerant charge 1100g 1200g 1100g 1200g 1100g 1200g

Precision ±0.5℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.05KW 0.1KW 0.37~0.75KW

Tank capacity 15L

Inlet and outlet Rp1/2"

Max.

lift 12M 25M 28~53M

Max.

flow 13L/min 16L/min 70L/min

N.

W 69Kgs 82Kgs

G.

W 79Kgs 92Kgs

Dimension 67 X 47 X 89 cm(L X W X H)

Package dimension 74 X 60 X 109 cm(L X W X H)

Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona .
