S And A Cw 5000 Chiller For Use On 100 Watt Laser Engravers - China

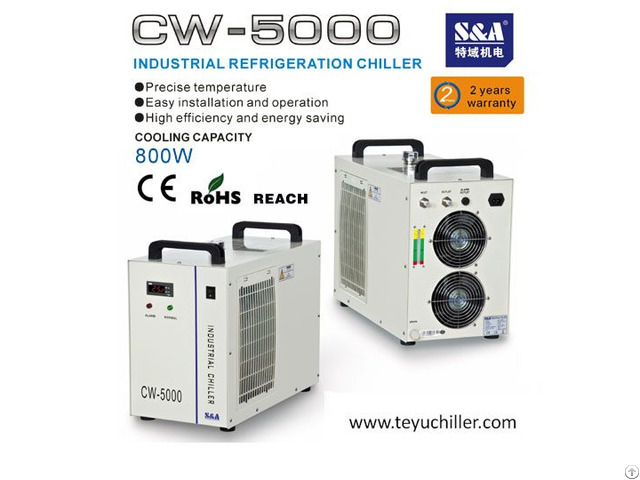

S&A CW-5000 chiller for use on 100 watt laser engravers

S&A brand CW-5000 chiller is applied to cool 100 watt laser engravers and developed and produced by S&A company of China

S&A chiller CW-5000 features

1 - 800W cooling capacity; use environmental refrigerant;

2 - Compact size, long working life and simple operation;

3 - ±0.3℃ precisely temperature control;

4 - The intelligent temperature controller has 2 control modes, applicable to different applied occasions; with various setting and display functions;

5 - Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

6 - Multiple power specifications; CE, RoHS and REACH approval;

Chiller parameter:

Model CW-5000AG CW-5000BG CW-5000DG CW-5000AH CW-5000BH CW-5000DH CW-5000AI CW-5000BI CW-5000DI

Voltage 220V 220V 110V 220V 220V 110V 220V 220V 110V

Frequency 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz 50Hz 60Hz 60Hz

Current 1.4~2.1A 3.5~5.6A 1~4.8A 3.5~5.6A 1.4~2.1A 3.5~5.6A

Compressor power 0.295KW 0.38KW 0.305KW 0.295KW 0.38KW 0.305KW 0.295KW 0.38KW 0.305KW

0.40HP 0.52HP 0.41HP 0.40HP 0.52HP 0.41HP 0.40HP 0.52HP 0.41HP

Refrigeration capacity 2361Btu/h 2999Btu/h 2866Btu/h 2361Btu/h 2999Btu/h 2866Btu/h 2361Btu/h 2999Btu/h 2866Btu/h

0.692KW 0.879KW 0.84KW 0.692KW 0.879KW 0.84KW 0.692KW 0.879KW 0.84KW

595Kcal/h 756Kcal/h 722Kcal/h 595Kcal/h 756Kcal/h 722Kcal/h 595Kcal/h 756Kcal/h 722Kcal/h

Refrigerant R-134a

Refrigerant charge 300g 320g 280g 300g 320g 280g 300g 320g 280g

Precision ±0.3℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.03KW 0.051KW 0.1KW

Tank capacity 6L

Inlet and outlet External Φ10mm brass connector Φ10mm speedy connector

Max.

lift 10 M 12M 25M

Max.

flow 10 L/min 13L/min 16 L/min

N.

W 24 Kgs

G.

W 27 Kgs

Dimension 58 x 29 x 47 cm (L x W x H)

Package dimension 70 x 43 x 58 cm (L x W x H)

Note: other electric sources can be customized; heating and higher temperature control precision functions are optiona .
