S&A water and air cooled chillers with refrigeration compressor

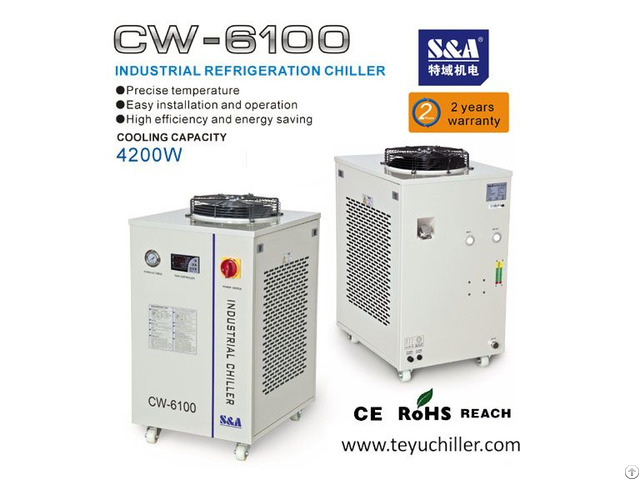

S&A water and air cooled chiller CW-6100 is developed and produced by S&A supplier of China.

CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

CW-6100 water and air cooled chiller parameter:

Model CW-6100AH CW-6100BH CW-6100AI CW-6100BI CW-6100AN CW-6100BN

Voltage 220V 220V 220V 220V 220V 220V

Frequency 50Hz 60Hz 50Hz 60Hz 50Hz 60Hz

Current 1~6.5A 1.5~7A 2~7.5A

Compressor power 1.38KW 1.29KW 1.38KW 1.29KW 1.38KW 1.29KW

1.84HP 1.72HP 1.84HP 1.72HP 1.84HP 1.72HP

Refrigeration capacity 14483Btu/h 14092Btu/h 14483Btu/h 14092Btu/h 14483Btu/h 14092Btu/h

4.24KW 4.13KW 3.38KW 4.24KW 4.13KW 3.38KW

3650Kcal/h 3551Kcal/h 3650Kcal/h 3551Kcal/h 3650Kcal/h 3551Kcal/h

Refrigerant R-22/R-410a

Refrigerant charge 950g 900g 950g 900g 950g 900g

Precision ±0.5℃

Reducer Capillary

Protection Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power 0.05KW 0.1KW 0.37~0.75KW

Tank capacity 15L

Inlet and outlet Rp1/2"

Max.

lift 12M 25M 28~53M

Max.

flow 13L/min 16L/min 70L/min

N.

W 65Kgs 77Kgs

G.

W 75Kgs 87Kgs

Dimension 67 X 47 X 89 cm (L X W X H)

Package dimension 74X 60 X 109 cm (L X W X H)
