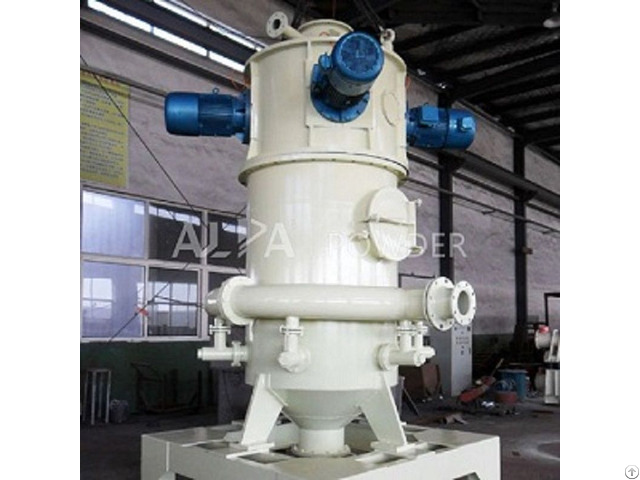

Talc Powder Grinding Machine Jet Mill Pulverizer - China

price: 20000.00 Dollar US$

Jet Mill Grinding Machine, Powder Grinding Mill, Grinder, Pulverizer, Dry Grinding of Talc Jet Mill Application:

Widely used in chemical, mineral, metallurgy, abrasives, ceramics, refractory materials, medicines, pesticides, food, health products, new materials and other industries.

Jet Mill Working Principle: Fluidized(Fluidised) bed opposed jet mill works with cyclone separator, dust collector and suction fan to form a complete grinding system.

Compressed air flow after filtration and drying would go into milling chamber from nozzles, and meet in the center area, where material would be impacted and ground and sheared.

Milled powder would go up to the classifying chamber by the air flow from suction fan.

The high-speed rotation of classifier wheel would create a strong centrifugal force to separate coarse powder and fine powder.

Qualified fine powder would go through the wheel vane then into the cyclone separator or dust collector, while mixture of coarse powder and fine powder would fall down to the milling chamber to be milled again.

Jet Mill Advantages: Optional explosion-proof design, can also be upgraded to nitrogen circulation system to meet the ultra-fine grinding processing requirements of flammable and explosive oxide materials; Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time; PLC control system, easy operation; Grinding is in closed system, low dust and noise, clean and environmentally friendly production process; The jet mill is suitable for dry grinding of various materials with Moh’s hardness below 9, especially for the materials with high hardness, high purity and high added value; Available particle size D50: 1-25μm; Ultrafine powder product is stable and reliable.


Company Contact:


  • Phone: 15621439795

  • Address: No.168, Wenhua Road, Weifang City, Shandong Province, China, Weifang , Asia , China

  • Email: Email


Published date: October 30, 2020

  • Business Description: The World's Leading Supplier of Ultra-Fine Powder Solutions

    Focusing on powder ultra-fine & ultra-pure pulverization and classification research, powder shape control and selective crushing, powder surface modification, and system integration of powder engineering equipment.

    Provide Complete Designing Solutions.
