Ul Vc 180100 Dye Sublimated Sportswear Laser Cutter - China

General Details

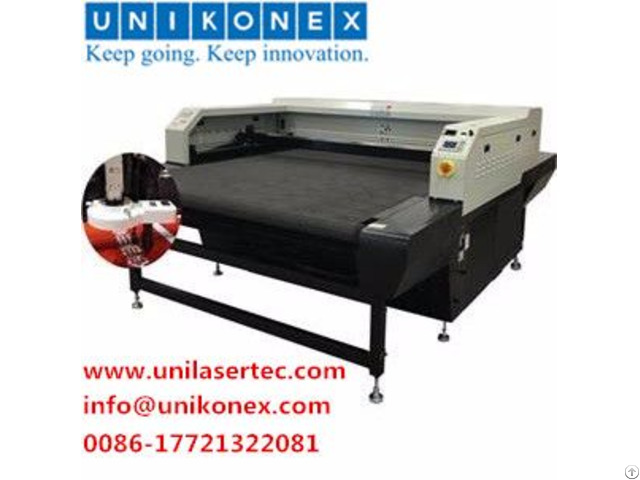

UL-VC 180100 Dye Sublimated Sportswear Laser Cutter.

is a model with CCD camera positioning and analysis system, with specialist software could positions the laser beam according to fiducial marks and automatically recognize the contour, then accurately position for cutting without any additional hand-work.

Plus advance function for compensation of distortion such as shrinkage, stretching and twists in the material, as result you will get faster processing speed together with high process reliability and short machine setup times.

It’s suitable for Dye Sublimated Cutting, Laser Cut Fabric

and Cutting Printed Fabric.

Technical Specification

Product Model UL-VC180100 UL-VC 180100 Dye Sublimated Sportswear Laser Cutter

Laser-Type CO2 laser, Safety Class 4

Processing Area (W x L) 1600×1000mm ~3200×8000mm, Accept custom design

Cooling Mode Water-cooling

Cutting Speed 0-8000mm/min

Positioning Accuracy ≤±0.1mm

Data or File Format AI, BMP, PLT, DXF, TXT, DST

Vision Solution CCD Optical Recognition System

Laser Power 100W-300W

Power Requirements AC 110/220V±5%

Software Unikonex Control and Cutting system

Exhaust Requirements External Exhaust or Air Cleaner Required (Consult factory for Specification)

Mechanical Design Laser safety class 4, CE compliant, brushless DC motors.
