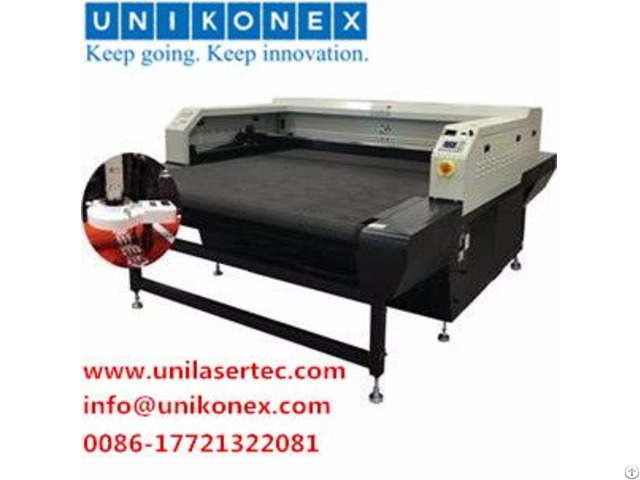

Ul Vc180100 Digital Printed Sportswear Laser Cutter - China

General Details

UL-VC 180100 Digital Printed Sportswear Laser Cutter is a model with CCD camera positioning and analysis system, with specialist software could positions the laser beam according to fiducial marks and automatically recognize the contour, then accurately position for cutting without any additional hand-work.

Plus advance function for compensation of distortion such as shrinkage, stretching and twists in the material, as result you will get faster processing speed together with high process reliability and short machine setup times.

It’s suitable for Digital Printed Cutting, Printed Fabric Cutting

and Cloth Cutting.

Features

1 - Laser cutting machine design with UniSmartCut controller which is based on advanced DSP technology for improving the performance, dedicated speed controller software design ensures fast and stable moving, plus automatic laser compensation technology.

2 - Suitable for end-user who has a high requirements on the precision of cutting, it is widely used for most of popular application such as garment, leather, toy, computer embroidery, handcraft, advertisement, decoration, building upholster, package materials, digital printing, paper products, etc.

3 - CCD Camera positioning system, captures marks via CCD camera and automatically recognize the printed design contour or curves, automatic camera detection enables printed materials to be cut out precisely along the printed outline.

Even copying tolerances in the printed format can be compensated by software control.

4 - Fast continues curve cutting is possible, due to the powerful data processing capability of the high speed DSP technology and precision mechanical system.

During high-speed operation, cutting either straight lines or curves without distortion.

5 - Protection system: enclosure protection, emergency stop switch, leakage protection.

6 - Give the user best usability&reliability , higher acceleration and speed, plus high precision and accuracy.

As example for general sportswear, daily production can be 500-800 sets.

Technical Specification

Product Model UL-VC180100

Laser-Type CO2 laser, Safety Class 4

Processing Area (W x L) 1600×1000mm ~3200×8000mm, Accept custom design

Cooling Mode Water-cooling

Cutting Speed 0-8000mm/min

Positioning Accuracy ≤±0.1mm

Data or File Format AI, BMP, PLT, DXF, TXT, DST

Vision Solution CCD Optical Recognition System

Laser Power 100W-300W

Power Requirements AC 110/220V±5%

Software Unikonex Control and Cutting system

Exhaust Requirements External Exhaust or Air Cleaner Required (Consult factory for Specification)

Mechanical Design Laser safety class 4, CE compliant, brushless DC motors.
