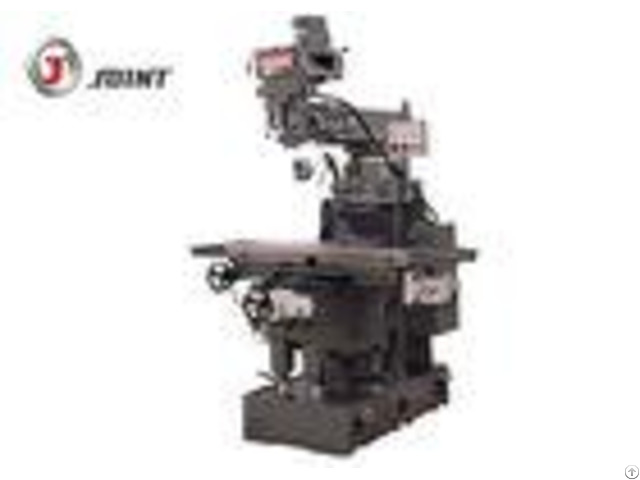

Universal 3 Axis Vertical Spindle Milling Machine 70 3600rpm Rotation Speed - China

P4 Spindle Bearing Turret Milling Machine X Axis Dovetail Way 70-3600rpm 7VA Product Features 1 - Squareguideway on Y and Z axis is featured a good rigidity and stability.

X axis is dovetail guideway.

2 - The worktable surface and 3 axis guide way are hardened and precision ground.

3 - NSK P4 bearings are adopted in spindle to improve accuracy of machine and increase the working life.

4 - Spindle tolerance: 0.002mm.

5 - High strength cast iron, high rigidity, long service life.

6 - Our universal turret milling machine are widely used for household appliances, daily necessities mold processing, boring in almost every country all over the world because of the high quality with competitive price.

Our after-sales service terms and conditions as follows: 1 - Perfect after-sales service system, quick service response.

2 - We provide on-site installation and debugging training.

3 - The vertical turret milling machines are tested in our factory before leaving our factory.

4 - During this period of one year warranty, if the turret milling machines were damaged by non-artificial reasons, we are responsible for repairing or changing parts.

5 - During this period of warranty, if there is something wrong with the turret milling machine, we are responsible to provide project for solving this problem at the soonest, and help customers to restore production as soon as possible.

Specifiaction - - - - Model | 7VA | Table size | 1370*330*99mm | X axis travel | 1000mm | Y axis travel | 500mm | Z axis travel | 500mm | Travel of spindle quill | 150mm | Max distance from the spindle nose to table | 680mm | Spindle rotation speed | 70-3600/(10Grades)/60HZ | Spindle Taper | NT40 | Spindle Rated power | 5HP(7.5HP Optional) | Tilt angle Forward and backward | 45 | Tilt angel left and right | 90 | Dimension | 2000*2000*2750mm | Net weight | 2700kgs | - - - - Standard Accessories: 1 - Step speed milling head 2 - Way cover 3 - Working light 4 - Tool and toolbox - - - - Optional Accessories | Milling chuck | Clamping kit | 6 Vise | Coolant system | X/Y Axis power feed | Elevator motor | Two axis DRO /Three axis DRO | Mechanic Feed | Variable speed milling head | Inverter speed milling head | NT30/NT40 Power feed | - - - - FAQ Q: Can we start with small quantity ?What's the MOQ? A: We can accept orders with any quantity.

The MOQ is 1 unit.

Q: Are you trading company or manufacturer ? A: We are factory.

Q: How long is your delivery time? A: Generally it is 5-10days if the goods are in stock.

or it is 15-25 days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ? A: 30% in advance.

and the rest payment should pay before delivery.

Q: What's your warranty terms? A: We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machines bill of lading date.

Extended warranty is available at the time of purchase.

Please contact your Joint sales representative for details.

Q: How can I get a quotation? A: Leave us massage with your purchase requements and we will reply you ASAP.

And you may contact us directly by Trade Manager or Telephone.
