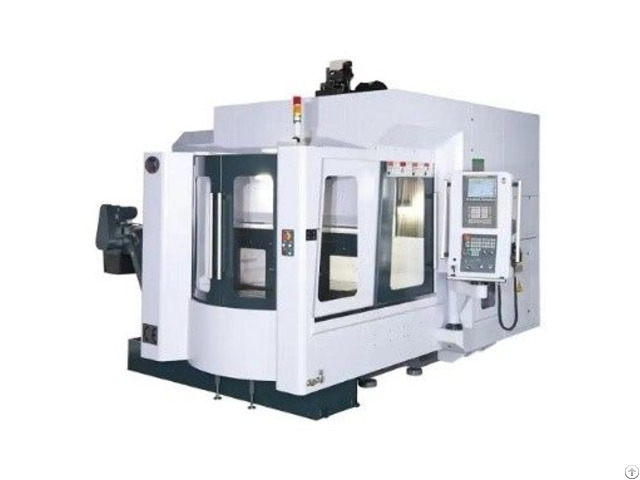

Vtw Series High Speed Vertical Machining Center With 2 Apc - Taiwan

price: contact company for price

Description:

1 - All major parts are built with certified Meehanite cast irons, featuring high tensile, superior vibration dampening and long term wearing resistance.

2 - High precision linear guide way on all 3 axes.

X/Y axis rapid feedrate up tp 60 m/min.

(opt.

)

3 - 3 axis moving column structure and fixing type working table ensures VTW to work percussively while running in linear way at high speed with heavier loading on the working table.

4 - Wide column design provide high rigid and machining accuracy.

Specifications:

Model VTW-755 Stroke

X Axis 750mm

Y Axis 550mm

Z Axis 500mm

Spindle Nose To Table Surface 100~600mm

Spindle Center To Z Axis Rail Surface 500mm Feed

X, Y, Z Axes Rapid Feed 48000mm/min(op.

60000 mm/min)

Cutting Feed 10000mm/min

Ballscrew Diameter & Pitch D40 x P16

APC system

Pallet Number 2

Pallet Change Method Rotary Type

Pallet Size 750 x 500mm

Max.

Permissible Loading 350kg x 2

Thread-Hole Spec.

35 M16

Pitch 100mm

Headstock

Spindle Driven Method Built-in

Spindle Taper BT-40

Spindle Motor 7.5/15(Low)

15/18.5(High)

Spindle Speed 12000 r.p.m.

ATC

ATC Type Arm Type

Tool Number 30

Max.

Tool Weight 7kg

Max.

Tool Diameter

(With Adj.

Tool/Without Adj.

Tool) 75 / 135mm

Max.

Tool Length 250mm

Tool Change Time (T-T) 2 sec(50Hz);1.8 sec(60Hz) General

Machine Weight 10000kg

Machine Dimension (W x D x H) 3480 x 2800 x 2900mm


Company Contact:


  • Phone: 886-4-25628747

  • Address: No.44-8 Ming-Chaun Rd., Sheng-Kang District, , Taichung City, na , Taiwan

  • Email: Email


Published date: October 25, 2024

  • Business Description: Chi-Fa Machinery was established in 1976, originated as a knee-type milling machine parts processing factory.

    From 1976 to 1992, the company gradually transformed from a processing facility into an OEM assembly provider, achieving a remarkable record of assembling 1,800 units per month—a feat still unsurpassed in Taiwan.

    Since 1992, Chi Fa has embarked on producing vertical machining centers under its own brand, steadily developing and expanding its product line to include high-end horizontal machining centers and five-axis machining centers through international collaborations with Japanese engine maker Yasunaga and Italian 5-ax machine maker PFG.

    Between 2011 and 2013, Chi-Fa proudly held the top sales position in the drilling and milling machine industry, with a monthly output of approximately 250 units, supplying prominent companies like Green Point and HiP, as well as various upstream and downstream manufacturers of mobile phone casings and other accessories.
