VZH-25 Tube Line

Accumulating more than 50 years of professional manufacturing experience, New Victor is specialized in supplying VZH 16～273 Tube mill, which is the result of “optimized structure design, strict material selection, high-precision process, elaborate parts assembly and complete meticulous service” under the integral teamwork of all members’ efforts in quality improving and technology studying and energy saving

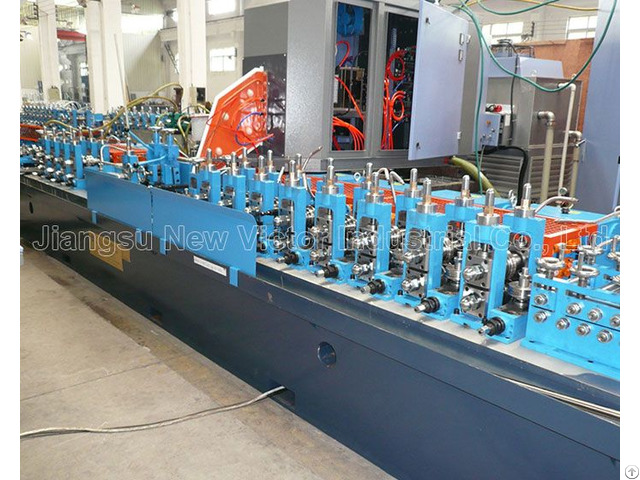

Brief Description of VZH-25 Tube Mill Line

VZH 25 ERW Tube mill line is designed to produce round tubes with diameter 9mm～25.4mm (max.

thickness: 1.2mm) and shaped tube (square, rectangular and special pipe), the tubes are mainly applied in manufacturing immersion heater tubes and refrigerators tubes and suitable sizing thin-wall tubes.

Tube Line, Ball Rolling Line, Slitting Line High Speed Manufacturer

Steel Strip →→ Double-heads un-coiler →→ Strip-head shearer & butt welder station →→ Vertical cage →→ Main driving unit + Forming M/C ( Flattening unit + Breakdown section + Fin pass section + Seam guide unit + High frequency induction welding system + Squeeze welding roller unit + Outside scrafing unit + Horizontal ironing stand) + Cooling section + Sizing M/C (Sizing section + Speed testing unit + Trunkey head / 7-roller straightener + Vertical put-out stand ) →→ CNC hot flying saw under computer control →→ Conveyor table

Specifications

Machinery model Tube O.

D (mm) Wall Thickness (mm) Speed (m/min) Main Motor (Kw) H.

F Welder (Kw)

VZH-12 Ф6 ~ Ф12 0.2 ~ 0.5 30 ~ 120 15 60

VZH-16 Ф7 ~ Ф16 0.2 ~ 0.8 30 ~ 120 22 60

VZH-20 Ф7 ~ Ф20 0.2 ~ 1.0 30 ~ 120 30 100

VZH-25 Ф9 ~ Ф25.4 0.25 ~ 1.2 30 ~ 120 37(22*2) 100
