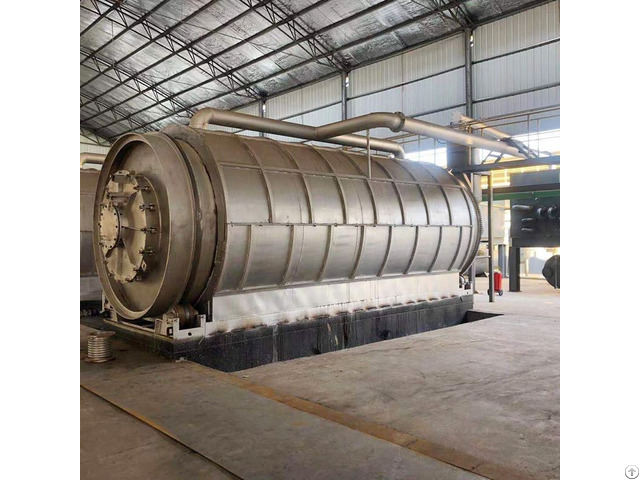

Waste Tire Rubber Pyrolysis Plant - China

Working process of waste tire pyrolysis plant:

1 - FEEDING (2 HOURS) : Load tires/rubbers into the reactor by automatic hydraulic feeder, after loading all, seal the feeding door.

2 - HEATING ( 8~10 HOURS): Start the Waste Rubber Pyrolysis Plant and the reactor will be rotating and heated by fuel.

When the temperature reaches the degree of 250 to 280, the oil steam will be continuous produced until the temperature reaches 350-480 C.

Oil steam will flow through oil gas separator, light component will enter the condensers and liquified as fuel oil, meanwhile the heavy oil will be discharged automatically into in heavy oil tank.

The liquefied part will be condensed as fuel oil, and the part which cannot be liquefied will be transferred by the water seal back to the burning chamber to be reused as heating material.

4 - COOLING(4~5HOURS): After the oil producing process is completed, leave the plant for cooling and waiting for discharge.

5 - DISCHARGING(2 HOURS): Discharge the carbon black automatically and pull out the steel wire finally.

Features of Pyrolysis Process Safety:

1 - Anti-explosion control: During the pyrolysis process, combustible gas will be generated as fuel gas for pyrolysis system heating usage.

The combustible gas will be filtered through the anti-flashback water seal to prevent combustible gas from flashing back to the oil tank and then enter the furnace to be recycled, causing combustion or explosion.

2 - Emission Control: 2-phase scrubbers and activated carbon filters to prevent pyrolysis process from releasing pollutants.

3 - PLC control : All motors and gauges of the equipment are connected to PLC, which can realize mechanical and electronic control.

The control cabinet is equipped with an alarm system.

When the temperature, pressure, or mechanical abnormalities occur during the operation of the equipment, the control cabinet will automatically alarm.

Company Contact:

• Posted By: Shangqiu Sihai Energy Technology Co.,Ltd

• Phone: 8603703163239

• Address: East side of Chenfeng Avenue, Developing District, Shangqiu , Henan , China

• Email:

• Website: https://www.sihaienergytech.com/

• Business Description: WHO WE ARE?

  Shangqiu Sihai Energy Technology Co., Ltd. provides a collection of research and development, production, sales and after-sales services, which has rich experience in the field of waste management over 20 years.

  WHAT WE DO?

  As a professional pyrolysis plant supplier, our company is mainly engaged in pyrolysis plant which refines waste tire, waste rubber, waste plastics, waste oil sludge, waste aluminum foil etc.

  into fuel oil.

  Vacuum oil distillation plant which refines waste crude oil/ engine oil/ tire oil/ plastic oil/ motor oil/ lube oil etc.

  into diesel and gasoline or base oil.

  WHY CHOOSE US?

  1 - Over 20 years of professional manufacture experience

  2 - Skilled team with 50 professional technicians.

  3 - Strict and standard quality control procedures

  4 - Overseas technical support provided

  5 - Machine exported and installed in more than 55 countries

  OUR TEAM

  Our company covers an area of 37,000 square meters.

  Our company has an experienced professional technical team, including 2 senior engineers, 20 senior technicians, 28 technicians.

  OUR FACTORY

  We are professional manufacturer of pyrolysis and distillation plant with more than 20 years experience and certificated by CE&ISO.

  With strict quality control and technician team, we can provide turn-key project service and assures best machine quality and considerate technical support.

  Our Products:

  - Waste Plastic Recycle To Fuel Pyrolysis Plant

  - Oil Sludge Treatment Pyrolysis Plant

  - Waste Tire Rubber Pyrolysis Plant

  - Used Engine Oil Distillation Plant

  - Crude Oil Distillation Plant
