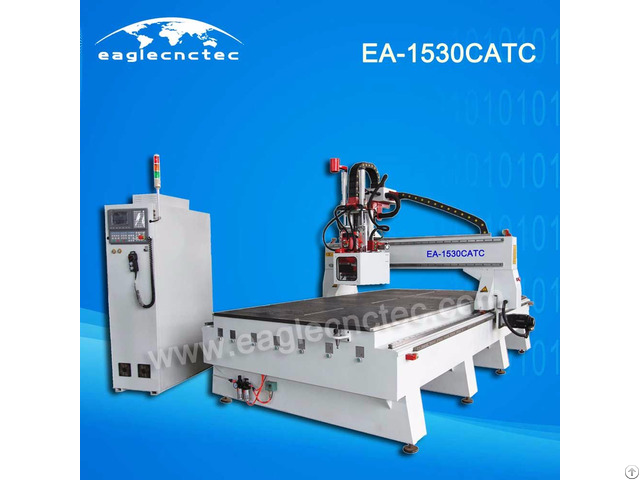

Woodworking Carousel ATC CNC Router Machining Center EA-1530CATC

ATC CNC router has another name of CNC router machining center or woodworking machining center.

EagleTec-1530CATC is equipped with carousel type auto tool changer.

Tool bank has 8 tool positions.

This wood router is good for jobs which needs multiple milling tools to finish.

Simply because, auto tool changer optimizes the progress of tool changing to reduce the time cost on it.

It makes tool changed automatically, instead of tradition way by manual.

This point also is the difference between ATC type CNC router and basic type router machine.

Application Materials: Solid wood, MDF, plastic, PVC, acrylic, other nonmetal materials and colorful metal like aluminum, copper.

Field: Panel furniture, Office furniture, Cabinet, Closet, Wood door, Bed, Wall art dector panel.

Main Configuration

1) Carousel type tool bank, 8 tools total 2) Origin Italy HSD 9.0kw ATC spindle, 0-24, 000RPM 3) Servo motor and servo pack – Delta or Yaskawa 4) Taiwan SYNTEC controller 5) Planetary gear box Features

1) Close loop servo driven system, which is a higher performing and zero maintenance system.

Further the motors are very smooth running and have very good acceleration and deceleration charactics.

2) Gantry is made of steel, unlike others who adopt aluminum materials.

A steel gantry is superior to a aluminum in it’s ability to suppress and absorb the forces created during cutting.

3) All the linear guides are centrally lubricated from a central system.

4) Vacuum table with 8 vacuum areas.

5) Frame is welded with seamless steel structure; processed by high temperature tempering

treatment and vibrating stress relief (VSR) to reduce residual stress; and it is supported by 8

legs with adjustable leveling feet.

6) Smaller size carousel auto tool changer cnc router is available also
