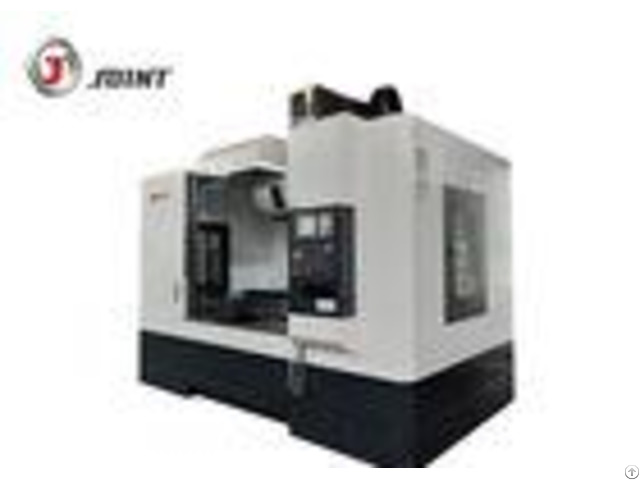

X Axis 1100mm Travel Vertical Cnc Machine 20kva Power Vmc1160l - China

X Axis 1100mm Travel Vertical CNC Machine For Processing Parts 20KVA Power Product features: 1 - Base, sliding block, working bench, vertical column, spindle box and other main basic parts adopt high quality cast iron.

2 - The guide rail of X, Z, Y axis are plastic rectangular guide, fast speed, eliminate intermittent creep, high rigidity, low friction, low noise, low temperature rise.

3 - Z axis matched with counterweight to keep balance, which ensure the spindle box running smoothly and stable.

4 - The feed of X, Y, Z direction adopts the inner loop preloading large-lead ball screw with double nut so it is of high feed speed.

5 - The spindle unit is high speed, high accuracy, high rigidity, with large load carrying capacity of axial and radial.

6 - Guide rail and ball screw of X, Y, Z axis hard way, all use protection device to ensure that the screw and the guide is clean and accurate.

7 - The machine tool external protection of machine tool uses the full protection structure.

It is convenient operation, safe and reliable, and nice shape.

Product services: 1 - Replace the broken or faulty spare parts free of charge in the warranty period.

2 - Always 24hours service for our customers 3 - Engineer overseas service available, after-sale service available in some region.

4 - Quick action and reply for the technical questions at any time in the whole life of the machine.

Specification Of Vertical machine center VMC1160L - - - - Model | Unit | VMC-1160L | Travel | X axis | mm | 1100 | Y axis | mm | 600 | Z axis | mm | 750 | Distance between spindle and table | mm | 110-860 | Working table | Table size | mm | 1300*650 | Max.

Load of table | Kg | 1000 | T slot | Pcsmm-mm | 5-18-122 | Positioning accuracy | X/Y/Z axis | mm | 0.01/0.008/0.008 | Repeated positioning accuracy | X/Y/Z axis | mm | 0.008/0.006/0.006 | Spindle | Spindle rotation speed | Rpm | 8000 | Spindle taper | | BT40 | Diameter | mm | 150 | Rivet model | | BT40 45 | Rapid feed | X/Y/Z axis | m/min | 30/30/18 | Cutting feed | X/Y/Z axis | m/min | 10 | Tool magazine | Umbrella type | Size | Tools | 20 | Too changing time (T-T) | Sec | 6 | Max.

diameter/ length/weight of tool | mm | 100/200/8 | Max tool diameter (no tool adjacent) | mm | 180 | Arm type | Size | Tools | 24 | Tool changing time (T-T) | sec | 3.5s | Max.

diameter/ /length/weight of tool | mm | 80/200/8 | Max tool diameter (no tool adjacent) | mm | 150 | Total capacity of electric | KVA | 20 | Weight of machine | Kg | 7500 | Dimension | mm | 3300*2800*2950 | - - - - Standard Accessories: Fanuc/MitsubishiControlle r system Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit Working light Tool and tool box Optional accessories: Siemens controller or other controller system Spindle oil coolant Umbrella type tool magazine Arm type tool magazine Screw type auto conveyor Chain type tool magazine 4 Axis rotary table Ring spray spindle
