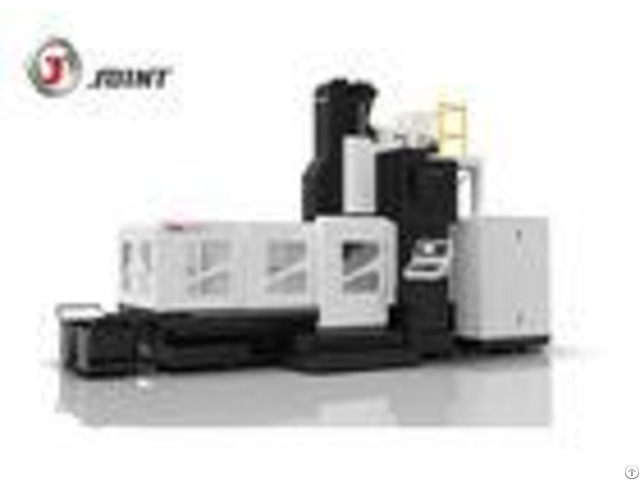

X Axis Travel 2000mm Double Column Machining Center For Making Mould High Speed - China
price: check with company for price
X Axis Travel 2000mm High Speed High Precision Double Column Machine Center For Making An Mould BTMC1020 Product Feature 1 - Resin sand casting 2 - X/Y AXIS rail adopts imported linear guide way, Z axis rail is quenching 3 - Imported roller screw rack, gear box 4 - X/Y axis adopt stainless steel telescopic cover.
5 - Standard with belt driven head, optional for Auto 5 faces head, gear head, ZF reducer head, Direct driven head, CTS head 6 - Taiwan production pneumatic cyliner 7 - Taiwan ATC, carousel type, disc type, chain type are avaliable as option 8 - Imported bearings for leadscrews 9 - Import coupling 10 - Headstock balancing system is hydraulic balance system as option 11 - Work lamp 12 - Pilot lamp 13 - USB and internet interface 14 - Manual pulse generator (MPG) 15 - Cerntralized automatiic lubrication system 16 - Cooling system 17 - Heat exchanger for electrical cabinet 18 - Leveling block and bolts 19 - Toolbox and tools 20 - CNC controller : Siemens, Fanuc, Mitusbishi, Fagor etc Industry Focus It is used for milling, drilling, boring, tapping and other finished automatical machining process in lots of machinery industries, such as is blow: 1 - automobile, 2 - aerospace, 3 - power-vehicle, 4 - textile machinery, 5 - packing machinery, 6 - moulding industry, and so on Specification of cnc Gantry type machine center - - - - Model | BTMC1020 | Table size | 900*2200mm | X aixs travel | 2000mm | Y axis travel | 1100mm | Z axis travel | 800mm | Gantry width | 1100mm | Distance between spindle and table | 150-950mm | Spindle rotation speed | 8000rpm BT40-10000/12000/15000Rpm optional) | Spindle taper | BT50 (BT40 Direct connection spindle ) | Spindle Motor | 15-18.5kw | Work table Tslot | 7-22*125 | X axis rapid feed | 18 | Y axis rapid feed | 18 | Z axis rapid feed | 18 | Cutting feed | 8 | Positioning accuracy | 0.01mm/mIN | Min.
set moving unit | 0.001mm | Net weight | 14000kgs | Max load of table | 2400kgs | Dimension | 6200*2600*3400mm | - - - - Standard Configuration 1 - FANUC System 2 - Heat exchaner in electric control cabinet 3 - Water tank cooling device 4 - Manual pulse generator 5 - Automatic lubrication device 6 - Workong lamp 7 - Outer protective cover 8 - Three-color warning lamp 9 - Spindle blowing device 10 - RS-232 standard output interface 11 - Handle air gun 12 - LCD 13 - Water gun 14 - Tool and tool box 15 - Electric control cabinet 16 - Operation manual 17 - Transformer Optional Configuration 1 - Mitsubishi system 2 - ATC (Manipulator) 3 - Spindle oil cooling device 4 - Water through spindle center device 5 - Disk type oil-water separator 6 - CNC rotation worktable (the 4th axis) 7 - Air conditioner in electric control cabinet 8 - fully-enclosed optical scale detecting system 9 - Automatic tool length measuting system 10 - Manual / Semi*autoatic right-angle head 12 - ZF gear box
Company Contact:
- Posted By: SHENZHEN JOINT TECHNOLOGY CO.,LTD
- Phone: 86-755-15218746521
- Address: BLOCK 64 FUMIN INDUSTRY ,PINGHU TOWN,LONGGANG DISTRIC ,SHENZHEN CITY, Shenzhen , Guangdong , China
- Email:
- Website: https://www.verticalcnc-machine.com
Published date: May 28, 2018
- Business Description: Shenzhen Joint Technology CO., LTD., was established in 1995 - Our headquarter is located in PingHu town, Shenzhen, China, we are dedicating to research and development, production, sale, and service of mold processing machine tools and specialized machine tool equipments for machine work of excellent quality
