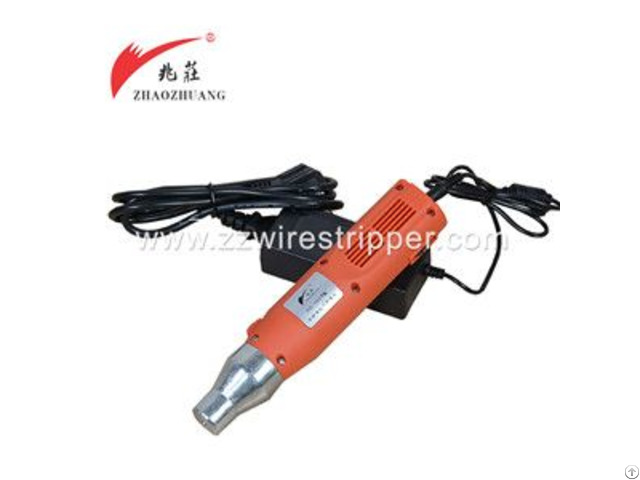

Xc 0316 Hand Held Wire Stripping Machine With Brushless Motor - China

1 - Use: XC-0316-enameled wire stripper.

It is a compat, easy-to-use and hand-held tools enameled wire stripper.

Can be adjusted to adapt to a variety of enameled wire, comfortable and convenient, fast and curettage enameled wire insulation coating the surface, decontamination clean, smooth surface.

Its superior performance, completely replace the traditional manual working, sandpaper grinding wheel and the syrup to paint tools, such as corrosion, not only greatly improve the efficiency of its work, but also strong welding, electrical, electronics, instrumentation, transformers, electronics, household appliances, Coil electric tools, such as manufacturing and maintenance industry ideal enameled wire striping paint equipment.

It sets no level adjustment electronic, electrical and paint striping blade as one, a lightweight, durable and micro-switches, striping paint with fast, efficient, simple, stable performance, low failure rate and a new layout and design of practical features.

2 - Properties and parameters: Power supply: 220V 50W

3 - How: 1, to be striping the first Shenmue Turret central enameled wire, press the power switch activated, the motor rotation immediately.

2, the anti-enameled wire along the axial direction of movement, until the end of the enameled wire, the film can be removed.

3, release the power button switches, motor immediately stop rotation.

4 - Related note: 1, when the enameled wire different specifications, to adjust the speed of adjustment back-end potential, (1 stall the slowest, the fastest 6 file) to the smaller diameter "slow" the direction of regulation, the larger diameter to the "fast "Direction of regulation, when the film can not completely clean enameled wire, increasing speed until clean so far.

If the governor was in enameled wire striper cut, they should reduce speed until meet the requirements so far.

According to the method selected the most appropriate speed, as the diameter of the corresponding speed, can be considered to have adjusted well.

2, striping paint to the end of the location of enameled wire, will not end immediately from the blade, it is necessary to stop such as knives from the knife-edge after the rotation, so as to avoid a sudden spin at the enameled wire damage from the knife-edge blade.

3, enameled wire before striping paint, to be slightly straightened by hand, not be allowed to avoid enameled wire on the knife-edge.

4, after falling into the use of the power unreasonable under the circumstances, can spin under the security cover, remove the film clean powder.

2 - Properties and parameters:

Copper wire diameter: Φ0.3-2.5 mm2

Power supply: 220V 50W

Mode of operation: hand-held

Stripping length: 3-50mm

the speed of adjustment: steppes speed regulation

Company Contact:

• Posted By: Wenzhou Zhaozhuang Automation Equipment Co., Ltd.

• Phone: +86-0577-88935088

• Address: 2nd Floor, Building 1, No. 128, Juguangyuan Middle Road, Ouhai District, Wenzhou, Zhejiang, China, wenzhou , zhejiang , China

• Email:

• Business Description: Wenzhou Zhaozhuang Automation Equipment Co., Ltd. specializes in the production of enameled wire stripping-free piercing terminal, motor copper-clad aluminum, copper, aluminum enameled wire end and power lead-out welding new scheme, using the paint-free piercing terminal crimping process, Five processes, such as lacquering, winding, dip flux, immersion tin, trimming head, etc., can be energized with one pressure, saving money and labor, making the environmental protection of production process and production products reach the international advanced level and improving Production efficiency.

  The workers' stripping machine, tin furnace and tin dust equipment are all in the province.

  As the country becomes more and more strict with environmental protection, this process directly subverts the soldering process.

  The products are used in motors and motors, air conditioner motors, exhaust motors, capacitor motors.

  , range hood motor, DC brushless motor, small AC and DC motor, water pump, air compressor, washing machine, generator, transformer, power tools, etc.

  Our company has developed the latest enamelled wire stripping-free piercing terminal, which does not require stripping and soldering, so that the process of enameled wire and aluminum enameled wire is more environmentally friendly and simple.

  Reduce production, reduce production processes and labor, and greatly improve production efficiency.

  This product can be used to change the welding or riveting process of the original stripping of copper and aluminum enameled wires.

  It can realize one-time crimping and conduction, and the electrical performance is stable.

  Compared with the original process, it saves time and labor.

  Environmentally friendly, non-polluting, and more stable performance, fully meet the ROHS directive requirements.

  Currently, the product is widely used by many manufacturers of electrical and mechanical equipment and related enameled wire connection products.

  The piercing terminal is adapted to connect the double-stranded or multi-strand enameled wire in parallel with the power lead-out wire, and the production and operation of the terminal block and the copper and aluminum paint stripping terminal (anti-oxidation, good electrical performance).

  In addition, our company specializes in producing automatic scraping machine, computer stripping machine, peeling and ending machine, automatic peeling and ending machine, cable tie tightening machine, servo terminal machine, fully automatic eight-head dip tinning machine, off Wire harness processing equipment such as paint machine and various terminal connectors, welcome new and old customers to inquire.
