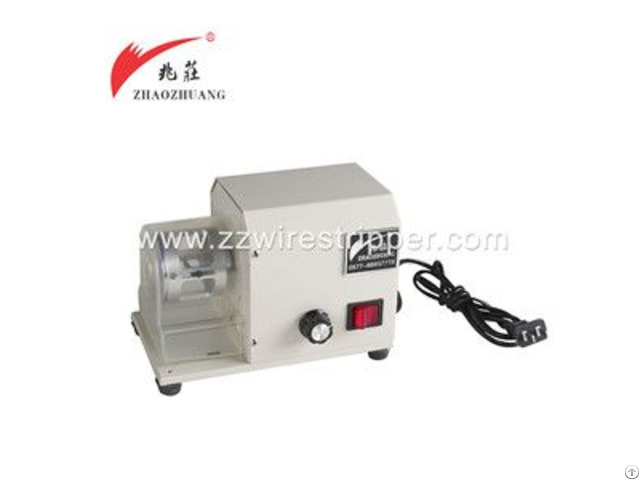

Xc 180 Wire Stripping Twisting Machine - China

Function

The machine is operated by a micro-motor.

The fuselage is light, the area of the machine is small, it is easy to move, the sound is small and the speed is fast.

It is suitable for stripping and twisting of single multi-strand plastic copper wire at one time.

Method of operation:

1 - First cut the length of the thread you twist.

2 - According to the size of the stripping line, choose and match the die, and then adjust the length of the stripping line you need to twist.

3 - Turn on the power of the machine and make it work.

4 - Insert the wire into the die of the machine quickly and pull it out quickly at the same time.

With one step in place, the function of stripping and twisting can be completed.

Model: XC-180

Power Supply: AC220V 50/ 60HZ

Size: L210xW125xH155mm

Weight: 6kg

Power: 120W

Processing range: 1-4mm

Stripping length: 2-20mm

Company Contact:

• Posted By: Wenzhou Zhaozhuang Automation Equipment Co., Ltd.

• Phone: +86-0577-88935088

• Address: 2nd Floor, Building 1, No. 128, Juguangyuan Middle Road, Ouhai District, Wenzhou, Zhejiang, China, wenzhou , zhejiang , China

• Email:

• Business Description: Wenzhou Zhaozhuang Automation Equipment Co., Ltd. specializes in the production of enameled wire stripping-free piercing terminal, motor copper-clad aluminum, copper, aluminum enameled wire end and power lead-out welding new scheme, using the paint-free piercing terminal crimping process, Five processes, such as lacquering, winding, dip flux, immersion tin, trimming head, etc., can be energized with one pressure, saving money and labor, making the environmental protection of production process and production products reach the international advanced level and improving Production efficiency.

  The workers' stripping machine, tin furnace and tin dust equipment are all in the province.

  As the country becomes more and more strict with environmental protection, this process directly subverts the soldering process.

  The products are used in motors and motors, air conditioner motors, exhaust motors, capacitor motors.

  , range hood motor, DC brushless motor, small AC and DC motor, water pump, air compressor, washing machine, generator, transformer, power tools, etc.

  Our company has developed the latest enamelled wire stripping-free piercing terminal, which does not require stripping and soldering, so that the process of enameled wire and aluminum enameled wire is more environmentally friendly and simple.

  Reduce production, reduce production processes and labor, and greatly improve production efficiency.

  This product can be used to change the welding or riveting process of the original stripping of copper and aluminum enameled wires.

  It can realize one-time crimping and conduction, and the electrical performance is stable.

  Compared with the original process, it saves time and labor.

  Environmentally friendly, non-polluting, and more stable performance, fully meet the ROHS directive requirements.

  Currently, the product is widely used by many manufacturers of electrical and mechanical equipment and related enameled wire connection products.

  The piercing terminal is adapted to connect the double-stranded or multi-strand enameled wire in parallel with the power lead-out wire, and the production and operation of the terminal block and the copper and aluminum paint stripping terminal (anti-oxidation, good electrical performance).

  In addition, our company specializes in producing automatic scraping machine, computer stripping machine, peeling and ending machine, automatic peeling and ending machine, cable tie tightening machine, servo terminal machine, fully automatic eight-head dip tinning machine, off Wire harness processing equipment such as paint machine and various terminal connectors, welcome new and old customers to inquire.
