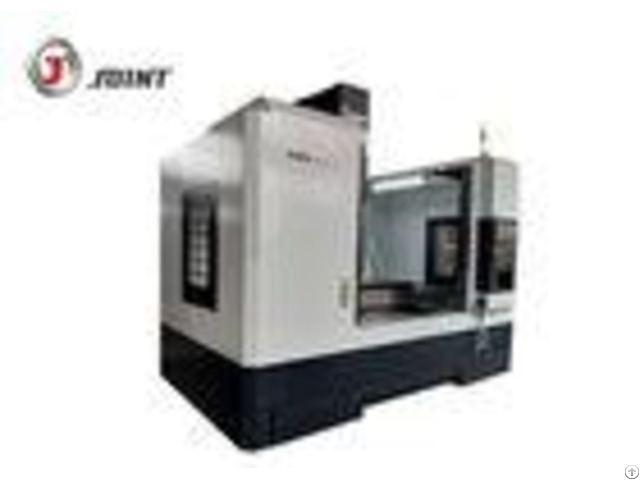

Y Axis 600mm Travel Vertical Machine Center Bt40 Holder Vmc1160l - China

X Axis 1100mm Travel Vertical CNC Machine For Processing Parts 20KVA Power Product features: 1 - With high speed, accuracy and rigidity as well as temperature stable increasing spindle system 2 - Super grade lubricating grease for spindle bearings ensures its long service life 3 - Spindle hole is equipped with air-blowing device for cleaning 4 - X, Y and Z axes with good resistance against vibration and impact are suitable for heavy load cutting, finish and rough machining adequate workpiece cooling system .

Main advantage: 1 - X axis adopt whole slider movement structure, that ensure X axis accuracy and machining rigidity.

Z axis is hard guideway, it also ensure the accuracy and rigidity.

2 - Taiwan high speedspindle 8000rpm.

3 - Taiwan disc type tool magazine, capability is 24 tools(optional).

The mechanical arm change tool with reliable and rapid action.

4 - Cooling system adopt mass flow and high-lift water pump, which guarantee, sufficient cooling in the high speed cutting condition.

Specification Of Vertical machine center VMC1160L - - - - Model | Unit | VMC-1160L | Travel | X axis | mm | 1100 | Y axis | mm | 600 | Z axis | mm | 750 | Distance between spindle and table | mm | 110-860 | Working table | Table size | mm | 1300*650 | Max.

Load of table | Kg | 1000 | T slot | Pcsmm-mm | 5-18-122 | Positioning accuracy | X/Y/Z axis | mm | 0.01/0.008/0.008 | Repeated positioning accuracy | X/Y/Z axis | mm | 0.008/0.006/0.006 | Spindle | Spindle rotation speed | Rpm | 8000 | Spindle taper | | BT40 | Diameter | mm | 150 | Rivet model | | BT40 45 | Rapid feed | X/Y/Z axis | m/min | 30/30/18 | Cutting feed | X/Y/Z axis | m/min | 10 | Tool magazine | Umbrella type | Size | Tools | 20 | Too changing time (T-T) | Sec | 6 | Max.

diameter/ length/weight of tool | mm | 100/200/8 | Max tool diameter (no tool adjacent) | mm | 180 | Arm type | Size | Tools | 24 | Tool changing time (T-T) | sec | 3.5s | Max.

diameter/ /length/weight of tool | mm | 80/200/8 | Max tool diameter (no tool adjacent) | mm | 150 | Total capacity of electric | KVA | 20 | Weight of machine | Kg | 7500 | Dimension | mm | 3300*2800*2950 | - - - - Standard Accessories: Fanuc/MitsubishiControlle r system Full enclosed cover Spindle encoder position system Three axis inner encoder feedback system Auto lubrication system Pneumatic system RS 232 Interface Operation unit Working light Tool and tool box Optional accessories: Siemens controller or other controller system Spindle oil coolant Umbrella type tool magazine Arm type tool magazine Screw type auto conveyor Chain type tool magazine 4 Axis rotary table Ring spray spindle
