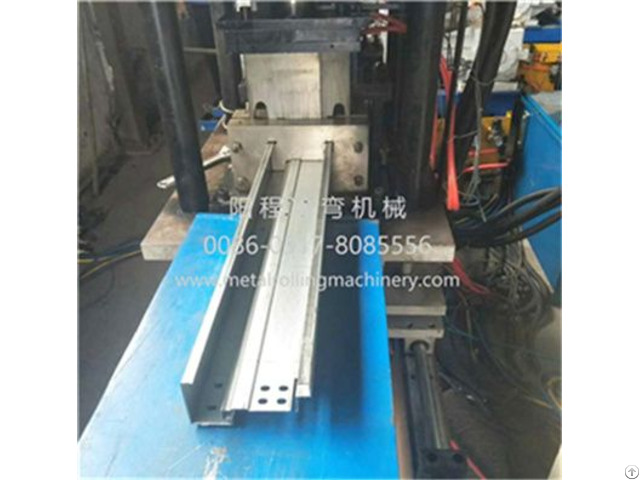

Yc Steel Door Frame Roll Forming Machine - China

Door Frame Roll Forming Machine

We also can design the Cold Forming Machine strictly according to your required profile.

SURFACE TREATMENT Door Roll Forming Machine

1) Processing material: steel strip, coil tensile strength 280Mpa-550Mpa

2) Material thickness: 1.5-2.0mm

3) Formed size: as per profile drawing above

4) Main motor power: 11kw+11kw

5) Pump power: 5.5kw

6) Productivity: 4-12m/min

7) Roller stations: 20-22 steps

8) Roller material: GCr15 steel with vacuum heat treatment HRC57°-60°

9) Active shaft material: 40Cr

10) Shaft diameter: Ф70mm

11) Cutting system: hydraulic mould cutting type, automatic cut to any length you need

12) Cutting blade material: SKD11

13) Punching system: auto multi-purpse punching device

14) Punching mould material: SKD11

15) Machine construction: as per machine photos

16) Transmission type: double chains

17) Control system: Taiwan Delta PLC computer control system with inveter

18) Power supply: 380V, 3 Phase, 50Hz(or as per your request)

19) Machine dimensions: about 8.5*1.6*1.2m

20) Machine weight: about 7700kg

TECHNOLOGY Metal Door Roll Forming Machine

3T hydraulic decoiler→leveling machine→guiding platform→auto multi-purpose punching system→main roll forming machine→hydraulic cutting system→2m output table, two 11kw electric motors, hydraulic station with 5.5kw electric motor, PLC control system

SALES TERMS

1).

Machine Price: Please contact us, we will try to give you good discount for starting our cooperation

2).

Payment term: 30%TT should be paid as advance deposit, 70%TT before shipment

Or 100% LC at sight

3).

Package: naked with simple plastic film and loaded in one 20-feet container

4).

Delivery time: 50 working days after receipt of the deposit

5).

Guarantee: 12 months.

If any part of machine breaks, we will supply it for free.

6).

After sales service

This producing line is maintained free of charge for 12 months.

When the machine is used in China, we will install and debug the machine for free; if it is used at abroad, we will send the professional technician to debug.

Buyers should take all the fees for technicians traveling abroad, and pay 100USD\day\person.
