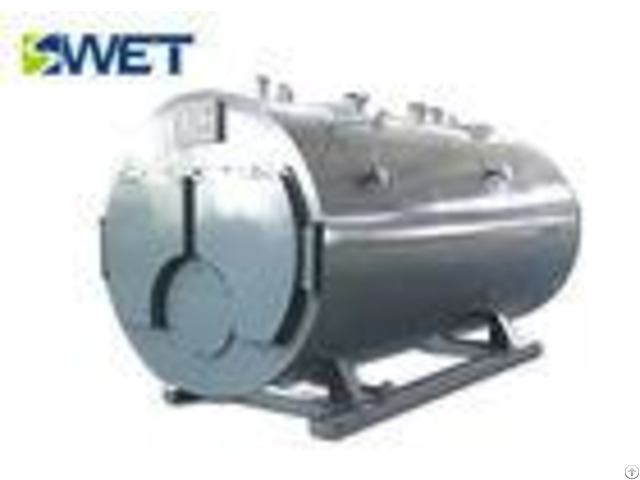

20t Water Tube Industrial Steam Boiler Natural Gas Fuel 2 5mpa Work Pressure - China

20T Horizontal Water Tube Industrial Natural Gas Steam Boiler Features 1 - I t is fast-assembly forced circulating oil/gas fired boiler with large heating area and compact structure.

2 - The heating area is formed by the closely arranged coils from the inside, middle and outside directions.

The inner coil is radiation heating area.

The middle and outside coils and the the inner coil surface form the convection heating area.

3 - The fuel is fired and releases heat in the combustion chamber that formed by inner coils.

After taking in most heat through radiation heating area, the high temperature smoke will be into the convection heating area and exchanges heat.

4 - It has the four-return design with high efficiency, which can realize the comprehensive evenly heating- up with low thermal inertia.

Technical Parameter - - - - WNS series of automatic gas (oil) steam energy-saving boiler product selection table | Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions | Unit | t/h | MPa | | | Nm/h | % | mm | WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 | WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 | WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 | WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 | WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 | WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 | - - - - Transport
