Anti Corrosion Oil Fired Hot Water Generatorlight Positive Pressure Combustion - China

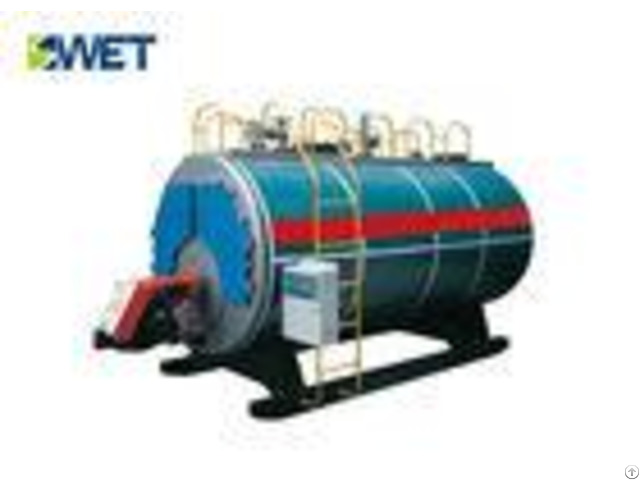

SZS Horizontal Oil Fired Hot Water Boiler With Fully Automatic Operation Product description: 1 - SZS-type oil-fired gas hot water boiler is a dual-drum vertical type "D" type arrangement quick assembly water tube boiler 2 - The fuel gas hot water boiler is composed of upper and lower drums, membrane water wall, convection tube bundle and economizer and condenser.

Product advantages: 1 - Simple and reasonable structure 2 - Safe and reliable operation 3 - Sufficient output 4 - Light positive pressure combustion 5 - Low power consumption Application Dyeing plants, hotels, canteens, restaurants, food plants, beverage plants, soy products factory, meat products factory, canned food Factories, wineries, pharmaceuticals Product parameters - - - - SZS water pipe type full automatic gas-fired hot water energy-saving boiler | Model | Rated thermal power | nominal working pressure | Leaving Water Temperature | return water temperature | efficiency | gas consumption | Overall dimensions of transportation | Unit | MW | MPa | | | % | Nm/h | mm | QXS(SZS)58 | 58 | 1.25(1.6)(2.5) | 130(150) | 70(90) | 98.3 | 6196 | 15360*7570*8318 | QXS(SZS)48 | 48 | 1.25(1.6)(2.5) | 130(150) | 70(90) | 98.09 | 5048 | 15600*9500*7920 | QXS(SZS)29 | 29 | 1.25(1.6) | 130(150) | 70(90) | 97.8 | 3150 | 9685*6870*7180 | QXS(SZS)21 | 21 | 1.0(1.25)(1.6) | 115(130)(150) | 70(90) | 97.13 | 2328 | 10130*6170*6134 | QXS(SZS)14 | 14 | 1.0(1.25)(1.6) | 115(130)(150) | 70(90) | 97.02 | 1558 | 8120*3385*3750 | QXS(SZS)10.5 | 10.5 | 1.0(1.25)(1.6) | 115(130)(150) | 70(90) | 97 | 1136 | 7250*3682*3820 | QXS(SZS)7 | 7 | 0.7(1.0)(1.25) | 95(115)(130) | 70(90) | 96.87 | 754 | 6770*3210*3775 | QXS(SZS)7 | 7 | 1.25 | 115 | 70(90) | 95.76 | 763 | 6760*2780*3299 | QXS(SZS)5.6 | 5.6 | 0.7(1.0)(1.25) | 95(115)(130) | 70(90) | 95.57 | 619.2 | 6450*2956*3620 | QXS(SZS)4.2 | 4.2 | 0.7(1.0)(1.25) | 95(115)(130) | 70(90) | 95.36 | 456.7 | 5700*3105*3410 | QXS(SZS)2.5 | 2.5 | 0.7(1.0)(1.25) | 95(115) | 70(90) | 95.13 | 314 | 5160*2840*2930 | Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | - - - -

Company Contact:

• Posted By: Henan Swet Boiler Co., Ltd.

• Phone: 86-371-68064938

• Address: NO.8 West Ring Roads , Kaifeng City, Henan Province, China., Kaifeng , Henan , China

• Email:

• Website: https://www.industrial-steamboiler.com

• Business Description: Henan swet boiler Co., Ltd was established in 1954 - We have been focusing on boiler and boiler parts manufacture and sale for over 60 years.

  It is a key enterprise in China engaged in A-class boiler and D1 D2 pressure vessel, have obtained the ISO 9001 certification.
