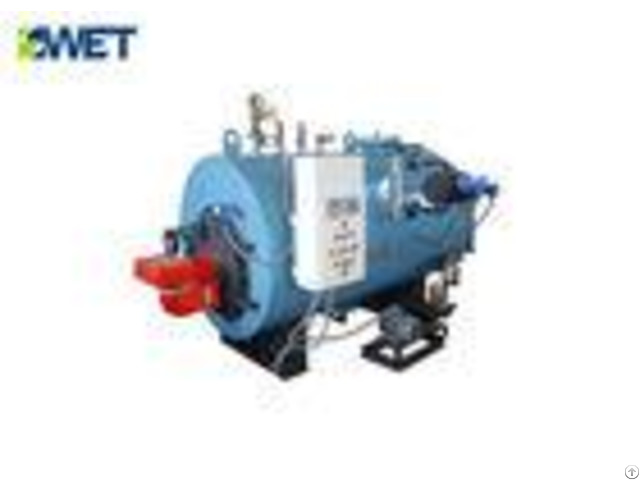

Environmental Protection Gas Steam Boiler Excellent Heat Resistance - China

1.25 Mpa Environmental Protection Gas Steam Boiler For Textile Industry Product description 1 - Gas steamboiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valve can play a role in pressure relief.

2 - The gas steamboiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.

3 - Gas steam boiler front and rear smoke boxes are equipped with left and right symmetrical smoke box door, easy to check and clean the pipe Product advantages 1 - Gas steam boiler automation instrumentation and auxiliary equipment is reasonable, advanced and reliable 2 - Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise Specification - - - - WNS series of automatic gas (oil) steam energy-saving boiler product selection table | Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions | Unit | t/h | MPa | | | Nm/h | % | mm | WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 | WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 | WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 | WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 | WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 | WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 | WNS3-1.0(1.25)(1.6)-Q(Y) | 3 | 1.0/1.25/1.6 | 184/197/204 | 20 | 245.12 | 95.99 | 4762*2447*2469 | Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | - - - - FAQ 1 - Q: How many years is the boilers life? A: The boiler is designed for 20years life.

2 - Q: How to choose a boiler model? A: Confirm the type (steam or hot water), capacity, pressure (or output temperature need) and fuel(coal, biomass, gas or oil) of the boiler, we will suggest a suitable model based onyour usage 3 - Q: Can I get guarantee of products? A: Yes, every product is 1 year quality warranty under customer correct using the products 4 - Q: Do you have any Certificate? A: Yes.

Each of our boiler has China GB and ISO9001certificate .

Company Contact:

• Posted By: Henan Swet Boiler Co., Ltd.

• Phone: 86-371-68064938

• Address: NO.8 West Ring Roads , Kaifeng City, Henan Province, China., Kaifeng , Henan , China

• Email:

• Website: https://www.industrial-steamboiler.com

• Business Description: Henan swet boiler Co., Ltd was established in 1954 - We have been focusing on boiler and boiler parts manufacture and sale for over 60 years.

  It is a key enterprise in China engaged in A-class boiler and D1 D2 pressure vessel, have obtained the ISO 9001 certification.
