Industrial Waste Cardboard Shredding Machine Continuous High Speed Shear - China

F-1600 Industrial Waste Shredder For Cardboard, Paper Files Crusher For Sale, Paper / Book / File Crusher, Carton Shredder Description of cardboard crusher machine, scrap paper crusher Different from the traditional reciprocation straight knife board, the F series crusher machine adopts new technology - userotating twisted knives design, adopt international leading oblique knob scroll meet the shear design of point moving knife and fixed knife, continuous high-speed shear so as to achieve the final crushing demand.

Compare with the J series shredder / crusher machine, the advantage of the F series machine is they can crusher materials to more smaller size (several millimeters in size).

The machine almost suitable for cutting all soft type materials, semi-rigid materials.

As for which model machine will be suitable for you, you only need tell us your capacity and final size request.

Technical Data - - - - Model | 1600F model | cutting motor | 8P18.5kw | transport motor | 4P3.0kw Inverter motor | reducer model | 125# | reducer speed ratio | 55: 1 | pulley wheel of cutting motor | 180 | Moving knife wheel | 500*800 | power distribution cabinet | Independent cabinet | Input belt | 3000*720mm | output belt | 5.5kw fan | moving knife | Alloy tool steel, 8 pieces knife | Stationary knife | Alloy tool steel, 2 pieces knife | main machine size | 1550*1700*1550 | cutting size | adjustable | output | 800-1200kg/h | - - - - Application - - - - Composite PU foam / Mattress foam, EPS foam / XPS foam, Rock wool foam, glass wool foam, EPE foam .

| Textile scraps - Clothes, like underwear scrap, jeans, towel, cap scraps, non-woven fabrics, all quilting edges, threads.

.

| Fibers - glass fiber, fiber yarn, Hemp fiber, Coconut fiber, Polypropylene fiber, Silk fiber .

| Leather | Carpets, Rugs | Waste Paper ( book, file, newspaper, magazine.

), carton | Cellulose | Old clothing (Underwear scrap, jeans, towel, cap scraps, non-woven fabrics, cotton fabrics .

) | Straw, grass, barks, leaves .

| - - - - Quick details 1 - Lead time - 7-35 working days 2 - Payment Term - 30% advanced payment once upon signing the contract, 70% balance payment before delivery.

(other payment term is also negotiable 3 - Machine Installation - We have engineer team support abroad installation.

For simple model we offer drawing/assembly videos for installation.

4 - Warranty - Our guarantee period is 12 months.

Within the guarantee period the broken parts (excluding quick-wear parts) can be exchanged with our new parts if it is not caused by human factors.

And technicians are available for solving big problems overseas(this situation never happened ).

Beyond the guarantee period the broken parts dispatched are charged at cost price.

Advantage & Service Compared with the traditional funnel type sponge machine, Joful Textile shredder / crushermachine adopts conveyor belt feeding mode, which is more uniform and safe.

The size of the particle size can be adjusted by changing the mesh screen.

Feed the blower to prevent the feeding of the plug.

The circuit is protected by thermal overload, even if the machine is jammed which is not burn the motor.

# One year of guarantee, life long time freetechnical support, we also offer needed spare parts # Our factory provide pre-testing when customer come to our factory check goods.

# We provide detail technical specification, electric diagram, installation book, operating manual, drawings etc.

# We can send engineers to customer factory to help installation and training workers if customer required The process of machine working - - - - a.

The materials feed in via input belt or feeding hopper | b.

moving knives rotating in very high speed and with same cutting principle as the shear the moving knife and stationary knives working together to achieve the cutting purpose.

| c.

The crushed materials come out from the screen, we customize hole size of screen base on clients' crushing demand, if the materials large than the needed size, it'll back to cutting room & repeatedly chopping until it reduce to the needed size.

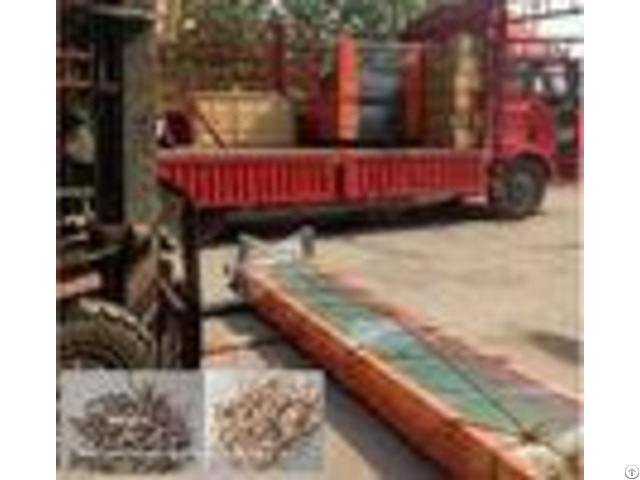

| - - - - Machine loading photos FAQ Q.

Can we see & test running machine with samples before buy ? A.

Sure, we welcome clients to visit our factory, and we have machines in workshop for making different cutting tests Q.

What's the price? A.

We have to learn below information before making quotation # Which material you need to crush ? # What's your capacity demand per hour ? # What's the final size request ?
