Natural Gas Steam Boiler For Machinery Industry 1 25mpa Rated Working Pressure - China

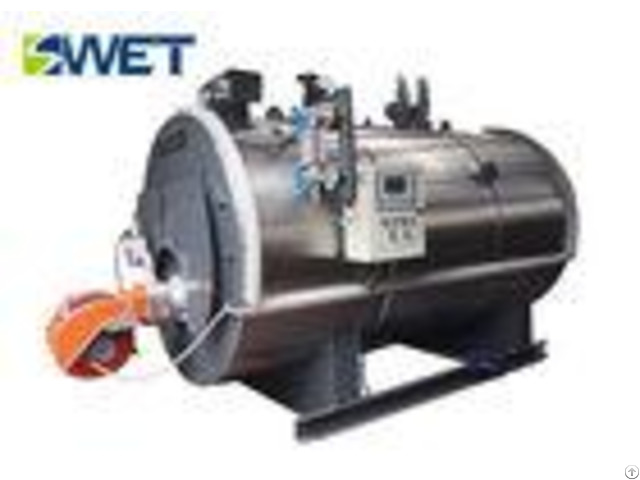

Fully Automatic 1.25Mpa 4T / h Natural Gas Steam Boiler For Machinery Industry Product description 1 - The series of boilers for the fast-loading horizontal internal combustion three back wet back fire tube structure.

The furnace with low profile is arranged in the center of the furnace.

2 - The shell and the tube plate, the furnace tube and the wet-smoke tube plate are all butt-welded.

In order to restrain the generation of NOx, a lower furnace volume heat load .

3 - Boiler installed three pressure controller, through the computer control system to achieve automatic replenishment and overpressure shutdown protection, in addition to two safety valves can play a role in pressure relief.

4 - The boiler body is provided with a manhole and three hand holes, the tail also set a check, view fire, explosion-proof door in one, easy to check and clean.

Product advantages 1 - There is no smoke in the boiler discharge, the emission concentration of SO2 and NOx is extremely low, and the environmental benefits are remarkable.

2 - Gas steam boiler body resistance is small, stable operation, saving power consumption, low noise.

3 - Gas steam boiler quick-mounted overall structure, small size, compact structure, easy installation Specification - - - - WNS series of automatic gas (oil) steam energy-saving boiler product selection table | Model | Rated evaporation | Work pressure | Steam temperature | Feed water temperature | Air consumption | Test efficiency | Transport dimensions | Unit | t/h | MPa | | | Nm/h | % | mm | WNS20-2.5-Q(Y) | 20 | 2.5 | 226 | 105 | 1407.5 | 97.62 | 8660x3520x4831 | WNS20-1.25(1.6)-Q(Y) | 20 | 1.25/1.6 | 194/204 | 105 | 1459 | 97.51 | 8870x3550x3750 | WNS15-1.0(1.25)(1.6)-Q(Y) | 15 | 1.0/1.25/1.6 | 184/194/204 | 105 | 1126 | 97.2 | 7450x3520x4090 | WNS10-1.25(1.6)-Q(Y) | 10 | 1.25/1.6 | 194/204 | 105 | 837.25 | 96.75 | 6370x2812x3514 | WNS8-1.25(1.6)-Q(Y) | 8 | 1.25/1.6 | 194/204 | 105 | 659.25 | 96.7 | 6000x2920x3430 | WNS6-1.25(1.6)-Q(Y) | 6 | 1.25/1.6 | 194/204 | 105 | 433.51 | 96.58 | 5470x2770x3195 | WNS5-1.25(1.6)-Q(Y) | 5 | 1.25/1.6 | 194/204 | 20 | 409.33 | 96.48 | 5160x2410x3015 | WNS4-1.0(1.25)(1.6)-Q(Y) | 4 | 1.0/1.25/1.6 | 184/197/204 | 20 | 334.23 | 96.3 | 4880*2710*2600 | Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | - - - - CASE 1 - Szsseriesgassteamboiler foregyptfoodandbeveragein dustrySteamcapacity: 15t/h workingpressure: 1.6Mpa/23 2psl 2 - WNSseries Gas Fired Condensing Steam Boiler For Mongolia food packaging company steam capacity: 6t/h, working
