Reliable 1 25 Mpa High Efficiency Water Boiler Full Automation Iso9001 Standard - China

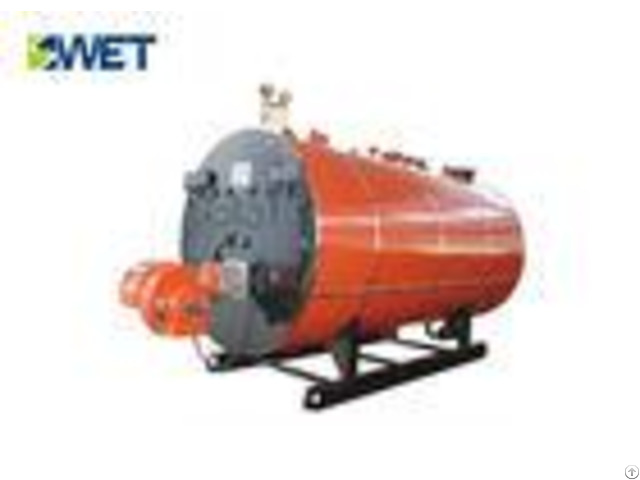

Safe And Reliable 1.25 Mpa Gas Fired Hot Water Boiler With Full Automatic Product description 1 - SZS series of fuel (gas) boiler for the classic D-type layout of the boiler.

2 - The company's SZS series of fuel (gas) boiler is a typical D-type arrangement of double-drum longitudinal-type water tube boiler, according to the size of the boiler divided into fast-type and assembly type.

Product advantages 1 - Full combustion, non-polluting emission, convenient operation and convenient installation 2 - The hot water boiler has the advantages of high thermal efficiency, large output, strong load adaptability and automation High degree, easy to operate, safe and reliable operation, is an ideal high efficiency, low consumption, low pollution, green products Application SZS series fuel gas boilers are widely used in hospitals, schools, textile mills, garment factories, large supermarkets, garment factories, printing Product parameters - - - - SZS water pipe type full automatic gas-fired hot water energy-saving boiler | Model | Rated thermal power | nominal working pressure | Leaving Water Temperature | return water temperature | efficiency | gas consumption | Overall dimensions of transportation | Unit | MW | MPa | | | % | Nm/h | mm | QXS(SZS)58 | 58 | 1.25(1.6)(2.5) | 130(150) | 70(90) | 98.3 | 6196 | 15360*7570*8318 | QXS(SZS)48 | 48 | 1.25(1.6)(2.5) | 130(150) | 70(90) | 98.09 | 5048 | 15600*9500*7920 | QXS(SZS)29 | 29 | 1.25(1.6) | 130(150) | 70(90) | 97.8 | 3150 | 9685*6870*7180 | QXS(SZS)21 | 21 | 1.0(1.25)(1.6) | 115(130)(150) | 70(90) | 97.13 | 2328 | 10130*6170*6134 | QXS(SZS)14 | 14 | 1.0(1.25)(1.6) | 115(130)(150) | 70(90) | 97.02 | 1558 | 8120*3385*3750 | QXS(SZS)10.5 | 10.5 | 1.0(1.25)(1.6) | 115(130)(150) | 70(90) | 97 | 1136 | 7250*3682*3820 | QXS(SZS)7 | 7 | 0.7(1.0)(1.25) | 95(115)(130) | 70(90) | 96.87 | 754 | 6770*3210*3775 | QXS(SZS)7 | 7 | 1.25 | 115 | 70(90) | 95.76 | 763 | 6760*2780*3299 | QXS(SZS)5.6 | 5.6 | 0.7(1.0)(1.25) | 95(115)(130) | 70(90) | 95.57 | 619.2 | 6450*2956*3620 | QXS(SZS)4.2 | 4.2 | 0.7(1.0)(1.25) | 95(115)(130) | 70(90) | 95.36 | 456.7 | 5700*3105*3410 | QXS(SZS)2.5 | 2.5 | 0.7(1.0)(1.25) | 95(115) | 70(90) | 95.13 | 314 | 5160*2840*2930 | Performance features: symmetrical furnace, uniform distribution, good cooling, sufficient combustion, long service life, stable output | - - - -

Company Contact:

• Posted By: Henan Swet Boiler Co., Ltd.

• Phone: 86-371-68064938

• Address: NO.8 West Ring Roads , Kaifeng City, Henan Province, China., Kaifeng , Henan , China

• Email:

• Website: https://www.industrial-steamboiler.com

• Business Description: Henan swet boiler Co., Ltd was established in 1954 - We have been focusing on boiler and boiler parts manufacture and sale for over 60 years.

  It is a key enterprise in China engaged in A-class boiler and D1 D2 pressure vessel, have obtained the ISO 9001 certification.
