Easy Operation Metallographic Cutting Machine T Slot Clamping Table - China
price: contact company for price

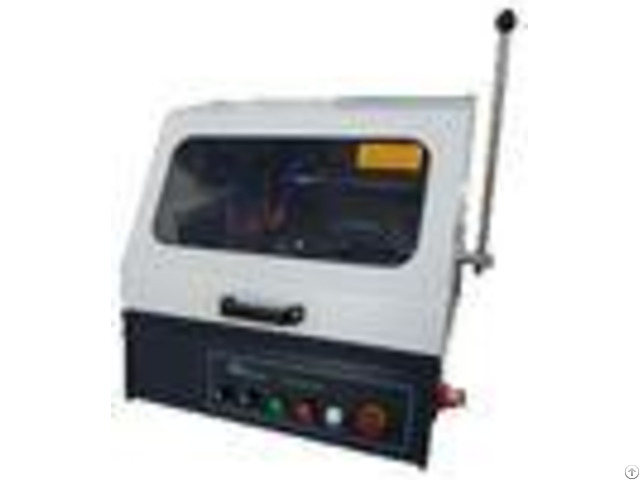

T-slot clamping table, quick holder with double parallel vise Metallographic Cutting Machine UNICUT 250 Features # All electronic components are Schneider Electric, safe and reliable.
# T-slot clamping table, quick holder with double parallel vise.
Easy to clamp various irregular shaped specimens.
# huge totally closed cutting chamber, high efficiency, easy to use.
cutting material # ferrous metals, nonferrous metals # casting, thermal treatment workpieces, forge piece # semi-conductor, ceramic ( must be used with diamond cutting blades) # other materials Tech Data - - - -
Description | Specification | Notes | Cutting blade | 250x32x1.2mm | Optional diamond cutting blade | cutting capacity | Max dia.
80mm for a pole, Max 80x80mm for diamonds | | Rotate speed | 2800rpm | Optional variable speed | Electrical specification | 380V 50/60Hz 3-phase | Optional single phase 220V, 3-p 220V, 3-p 480V | Motor power | 2200W | | Dimensions | 66L x 61W x66H cm | | Weight | 128kg | | - - - - standard accessories - - - -
Description | Quantity | Description | Quantity | Cutting blade | 1 piece | 32 open-end wrench | 1 | Cooling water box & cooling pump | 1 set | 8 hexagon wrench | 1 | Water inlet/ water outlet | 1 | Dedicated coolant fluid | 1 | 3-phase power line & plug | 1 | Power line | 1 | Specification | 1 | Qualification certificate | 1 | Warranty card | | Encasement invoices | | - - - - optional accessories - - - -
Description | Specification | Description | Specification | Diamond cutting blade | 250mm | Vertical holder | | - - - -
Company Contact:
- Posted By: Suzhou Fema Precision Instrument Co., Ltd.
- Phone: 86-512-57860120
- Address: No. 289, Wangshan Road ,YuShan Town,Kunshan,Jiangsu Province,PRC., Kunshan , Jiangsu , China
- Email:
- Website: http://www.chinafema.com/
Published date: March 1, 2018
- Business Description: ema Instrument specializes in researching & developing, manufacturing mid-market & leading-edge metallographic experiments, hardness tester and optical instruments.
Widely used in quality control, R&D, laboratories and across numerous industries, including Machinery, Electronics, Automotive, Bearing industry, Molding, Metal, Rubber, Connectors, Household Appliances, Printed Circuit Boards, Aerospace, Medical equipment, Universities.
