Touch Screen Vickers Hardness Tester Manual High Effcient Touchvicker 5 - China
price: contact company for price

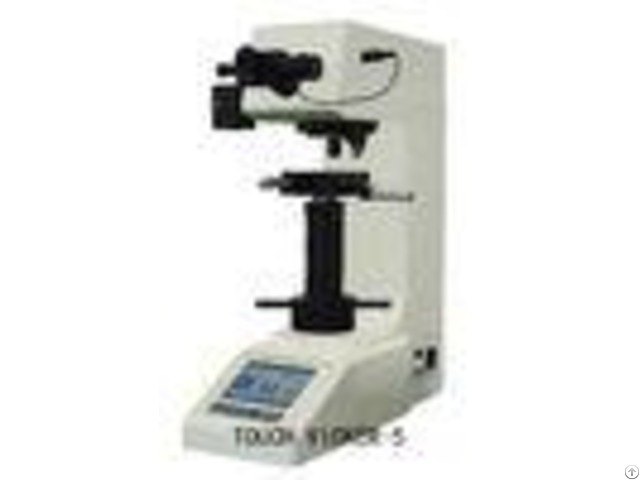

Touch Screen Color Digital Vickers Hardness Tester TouchVicker TouchVicker-5 Hardness testing of metals and scientific researching; Hardness range from soft materials to very hard materials; Except very thin and coated layers, can test almost the metals.
Characteristics: Equips with Auto Turret, close loop loading system, key panel and touch screen double input methods, blue tooth transferring technology, meets different kinds of materials measuring requirement.
Close loop loading system is to realize auto loading, dwell and unloading, makes better accuracy and easier installation.
5.2 color touch screen with innovative interface design, makes force selection, dwell time setting, scale conversion and data reading, transferring, printing more convenient and fast.
Operator can smoothly switch objectives and indenter by auto turret, maximally avoid damages of objectives, indenter and force system by manually operation.
One touch operation of diagonal line by high resolution measurement/observation objectives and built-in length encoder high definition digital eyepiece.
Auto hardness conversion from vickers scale HV to HK, HBW, HRA, HRB, HRC, superficial rockwell scales, etc.
Equips with Bluetooth Device, optional Bluetooth printer and computer acceptor is available to realize wireless printing and data transferring.
Abundant optional auxiliary devices to make hardness measurement more automated and eliminate human operation error, VicPad Vickers measurement device and iVicky 2.0 PC software system.
Technical Data: - - - -
Name | Touch Screen Digital Vickers Hardness Tester | Model | TouchVicker-5 | Loading force | Kgf | 0.3, 0.5, 1, 2, 2.5, 3, 5 | N | 2.94, 4.9, 9.8, 19.6, 24.5, 29.4, 49.0 | Optic System | Observe and Measure Objectives: 10X/40X | Hardness Range | 1HV-2967HV | Turret | Manual Turret(Optional Motorized Turret) | Loading Control | Auto loading dwell and unloading | Eyepiece | 10x digital eyepiece | Dwell Time | 5-60s adjustable | Illumination | LED / halogen | Vertical Space | 170mm | Horizontal Space | 130m | Power Supply | AC220V/50Hz; AC110V/60Hz | Tester Dimension | 530x225x630mm | Packing Dimension | 630x460x710mm | Gross / Net Weight | 75Kg/55Kg | Conform Standards | ISO6507, ASTM E92, JIS Z2244, GB/T4340 | - - - -
Company Contact:
- Posted By: Suzhou Fema Precision Instrument Co., Ltd.
- Phone: 86-512-57860120
- Address: No. 289, Wangshan Road ,YuShan Town,Kunshan,Jiangsu Province,PRC., Kunshan , Jiangsu , China
- Email:
- Website: http://www.chinafema.com/
Published date: March 1, 2018
- Business Description: ema Instrument specializes in researching & developing, manufacturing mid-market & leading-edge metallographic experiments, hardness tester and optical instruments.
Widely used in quality control, R&D, laboratories and across numerous industries, including Machinery, Electronics, Automotive, Bearing industry, Molding, Metal, Rubber, Connectors, Household Appliances, Printed Circuit Boards, Aerospace, Medical equipment, Universities.
