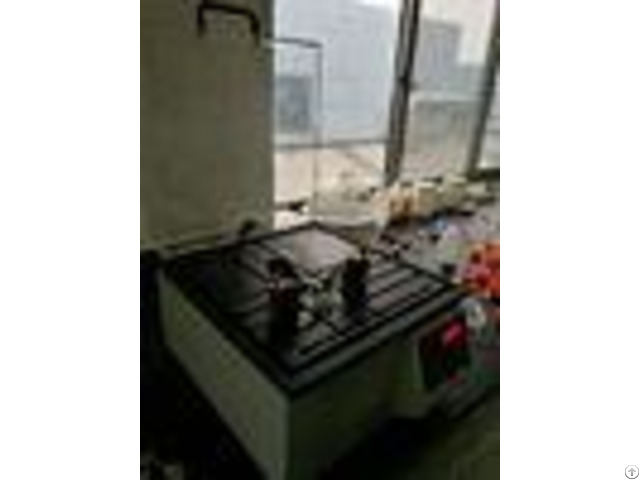

Variable Speed Metallographic Cutting Machine Manual Precision Cutter Oem Available - China

price: contact company for price

Dry or wafering cutting Vacuum cleaner is optional, Metallographic cutting machine iCUT 230BManual precision cutter Features # Variable Speed, 500-3000rpm, closed-loop speed control.

The speed is shown digitally on the display.

The variable speed is determinable by a rotating switch.

The rotate speed can be customized.

# Precision cutting, the accuracy is about 0.01mm.

# Dry or wafering cutting.

Vacuum cleaner is optional.

# Apply to various metal materials, circuit board, semiconductor, crystals, ceramic, quartz glass and lithofacies samples precision cutting.

The facility is equipped with kinds of specimen holders, which can cut irregular shaped workpieces, it is ideal for industries and science institutions applications.

Specification - - - -

Description | iCUT 230B | Notes | Y axis feed | Table-feed cutting | | Cutting blade | 200x12.7x0.6mmultrathin diamond cutting disk | Option: 175, 230mm | Speed | 500-3000rpm | Can be customized | Work table dimensions | 400*400mm | | Y axis range | 80mm | | X axis range | 120mm | | Electrical specification | 110V/220V 50/60Hz single phase | | Motor power | 180W | 600W, 1000W can be optional | Dimensions DxWxH | 405x 405 x 330 mm | | Weight | 30kg | | - - - - Standard accessories - - - -

Description | Quantity | Description | Quantity | Vertical holder | 1 | X axis feed holder | 1 | Water inlet | 1 | Power line | 1 | Specification | 1 | Qualification certificate | 1 | Warranty card | 1 | Encasement invoices | 1 | - - - - Optional accessories - - - -

Description | Specification | Description | Specification | Diamond cutting blade | 175, 230 | | | Stickup holder | | Deck platform | | Multipurpose clip | | Angle fixture | | - - - -


Company Contact:


  • Phone: 86-512-57860120

  • Address: No. 289, Wangshan Road ,YuShan Town,Kunshan,Jiangsu Province,PRC., Kunshan , Jiangsu , China

  • Email: Email


Published date: March 1, 2018

  • Business Description: ema Instrument specializes in researching & developing, manufacturing mid-market & leading-edge metallographic experiments, hardness tester and optical instruments.

    Widely used in quality control, R&D, laboratories and across numerous industries, including Machinery, Electronics, Automotive, Bearing industry, Molding, Metal, Rubber, Connectors, Household Appliances, Printed Circuit Boards, Aerospace, Medical equipment, Universities.
