Various Irregular Shaped Specimens Metallurgical Equipment Easy Clamp 160kg - China

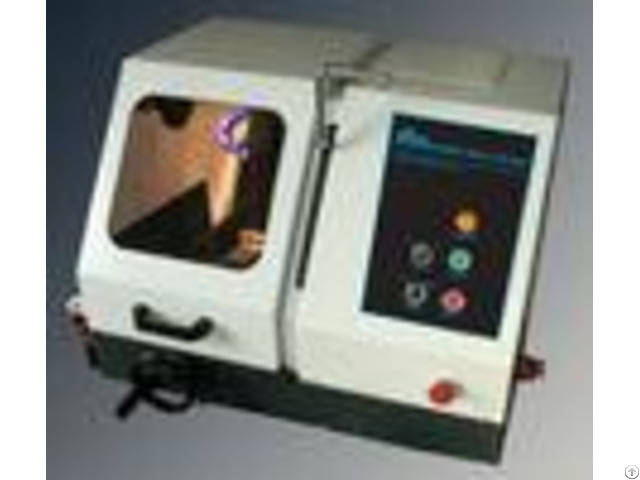

Easy to clamp various irregular shaped specimens Metallographic Cutting Machine UNICUT 300 # High quality ballscrew and linear rail, with handwheel driven chop cutting and automatic driven table-feed cutting systems.

# All electronic components are Schneider Electric, safe and reliable.

# T-slot clamping table, quick holder with double parallel vise.

Easy to clamp various irregular shaped specimens.

Cutting Material # ferrous metals, nonferrous metals # casting, thermal treatment workpieces, forge piece # semi-conductor, ceramic ( must be used with diamond cutting blades) # other materials Tech Data - - - -

Description | Specification | Notes | Cutting blade (hole dia.

32mm) | Standard 300mm ultrathin cutting blade | Optional diamond cutting blade | cutting capacity | Max dia.

80mm for a pole, Max 80x80mm for diamonds | | Rotate speed | 2800rpm | | Electrical specification | 380V 50/60Hz 3-phase | Optional 3-phase 220V, 440V, 480V | Motor power | 4000W | | Dimensions | 90L x 65W x86H cm | | Weight | 160kg | | - - - - standard accessories - - - -

Description | Quantity | Description | Quantity | Cutting blade | 1 piece | 32 open-end wrench | 1 | Cooling water box & cooling pump | 1 set | 8 hexagon wrench | 1 | Water inlet/ water outlet | 1 | Dedicated coolant fluid | 1 | 3-phase power line & plug | 1 | Power line | 1 | Specification | 1 | Qualification certificate | 1 | Warranty card | 1 | Encasement invoices | 1 | - - - - optional accessories - - - - | | | | | Description | Specification | Description | Specification | Diamond cutting blade | 300mm | Vertical holder | | - - - -
