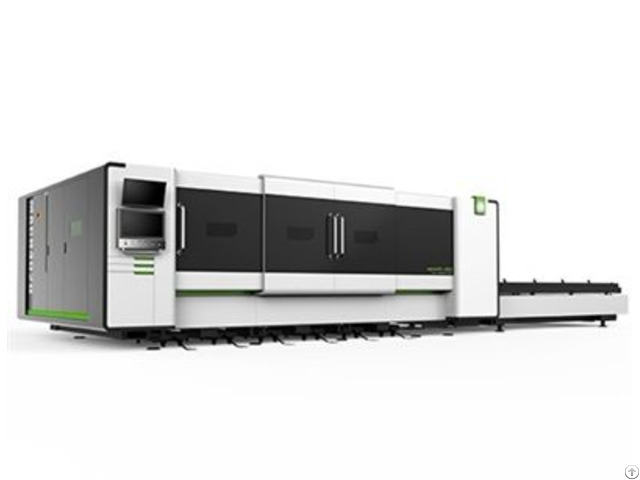

10000w High Power Fiber Metal Laser Engraving Machine Mach2040 Mach6025 - China

This kind of high power metal laser engraving machine specially fit for processing high reflective material such as brass, red copper and galvanize sheet etc .

Features:

a.

The high power fiber metal laser engraving machine with better laser beam quality, lower operating costs, less power consumption and loger working life by using the new generation IPG fiber laser source.

b.

The Metal laser engraving machine equipped with PRECITEC new generation pro-cutter laser cutting head, optimized cutting process, monitoring cutting condition through APP use easily and friendly c.

Eagle eye(CCD) technology, ultra0fast positioning the sheet metal edge, minimum cutting down time, In addition, it also can process punching parts and precut parts, due to secondary positioning function

d.

Optimized cutting technology with programmable laser frequency and focus position, to achieve high efficiency processing on different thickness& type sheet metal .

ll cutting parameters can be programmed, no need human intervention e.

Automatic energy saving mode: while stop over 5 minutes, machine automatically switch into “ standby “ mode, to reduce power consumption .

f.

Auto exchanging table with Hydraulic lifting system; ensure synchronous running for metal laser engraving machine, reliable and stable

g.

The metal laser engraving machine with remote function, can remotely monitor the running conditions of machine, much easier for service and faster response

h.

With ergonomic design, equipped with intelligent operation terminal, user-friendly and easy to learn

Applicable materials

Metal materials such as aluminum alloy, Galvanize sheet, Carbon steel, stainless steel, Brass, Red copper etc.

Technical Parameter Maximum material size 4000X2000 mm

Laser power 4000W/6000W/8000W/10000W

Maximum speed 170m/min

Positioning Accuracy ±0.05mm(VDI/DGQ3441)

Repeated accuracy ±0.03mm(VDI/DGQ3441)

Model MACH2040/6025

Work environment Temperature 0-45℃ Humility≤ 80%, clean, less dust

Maximum accelerated speed 2.2(G)

Total Power 18kw/25kw

Machine weight 13.5T/15.5T

Dimension Mach4020: 12000*3500*2200mm

Mach6020: 15500*4200*2200mm
