Cnc Nested Based Router Missile S9 - China

price: contact company for price

Cnc Nested Based Router Missile S9

Products Photos Catalog Cnc Nested Router Photos Catalog

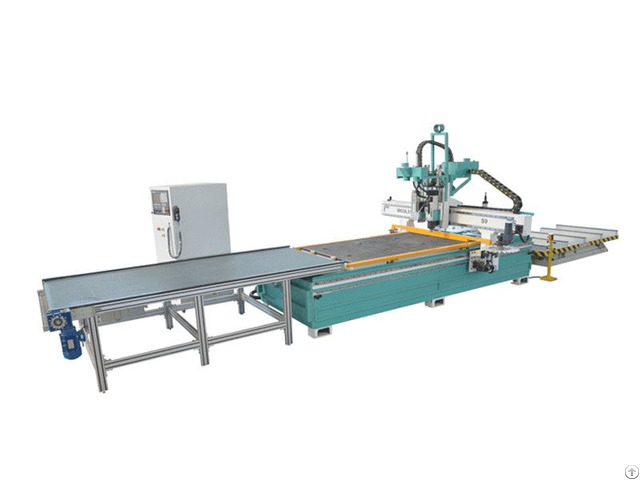

CNC Nested Based Router Missile-S9

MISSILE-S9 Product Parameters

XYZ working area 1300*2500*200mm

XYZ Traveing Positioning Accuracy ±0.05mm

XYZ Repositioning Accuracy ±0.05mm

Table Surfce Vacuum table

Max.

Traveling Speed 60000mm/min

Max.

Working Speed 25000mm/min

Spindle Power HSD Air-cooling 9KW

Drive&Motor YASKAWA servo

Tool Storage Capacity 12

Drilling Capacity 9

Working Voltage AC380V/50Hz/3PH

Operating System Syntec Control System CNC Nested Router MISSILE-S9 Features

S9 is professional machine for panel furniture production .

It is equipped with 9KW ATC Spindle( 12 carousel magazine ) ; Italy FAM 5+4 boring heads which can meet all kind vertical holes drilling ‘s requirements .

S9 has multifunction : routing, drilling, cutting, edge chamfering etc.

S9 is CNC Router Best in China, also with automatic push function which can push the finished panel board from the worktable and collect the dusts during working at the same time .

In this way, it is very easier for the operator to unload the panel board and new feeding board easily be strong sucked on the worktable.

Automatic loading snd unloading system, Automatic marking label system, also can be optional.

CNC Router, Acrylic Cutting Machine, Cabinet Making Machine Supplier


Company Contact:


  • Phone: 8653188233860

  • Address: Room3-605,Yinhe Building,NO.2008 Xinluo Street,Gaoxin District,Jinan City,Shandong, China, Jinan , Shandong , China

  • Email: Email


Published date: January 28, 2018

  • Business Description: MISSILECNCis a professional CNC machinery manufacturer.

    At MISSILECNC, we design and manufacture cnc routers for milling, drilling, engraving and cutting of plastic, acrylic, wood, copper, aluminum, stone and other materials.

    MISSILECNC, expanded its presence with over 5, 000 CNC routers and systems, involving more than 200 kinds of industries: For example, advertisement, decoration, marking, label industry, panel furniture, solid wood furniture manufacturing , mold manufacturing as well as crafts and gifts.

    We are the CNC Router, Acrylic Cutting Machine, Cabinet Making Machine Supplier
