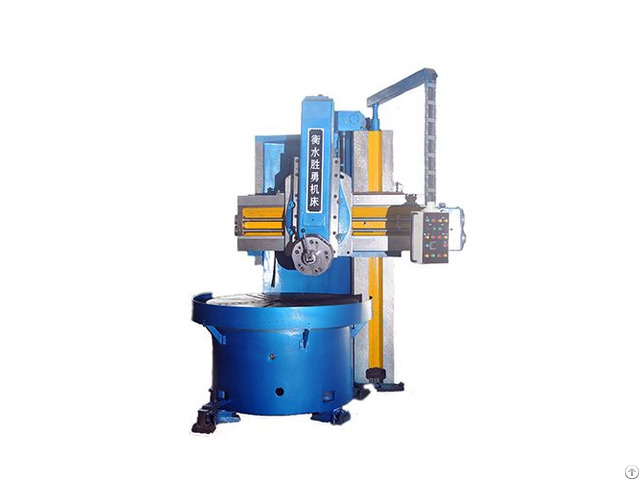

Cnc Vertical Lathe Vtl Machine For Sale C5126 - China
price: 60000.00 Dollar US$
Technical specification of Cheap vertical lathe machine for sale C5126
1 Table diameter 2300mm
2 Maximum turning diameter 2600mm
3 Maximum Height of workpiece 1300mm
4 Maximum Weight of workpiece 10t
5 Speed range of table 2.5-80r/min
6 Working table Step of rotation speed 16
7 Range of feed rates 0.8-86 mm/min
8 Step 12
9 horizontal travel of vertical slide 1600 mm
Vertical travel of vertical slide 915 mm
10 Horizontal travel of side tool post 750 mm
Vertical travel of side tool post 900 mm
11 Crossrail travel 850 mm
12 Maximum size of tool bar section 35×45 mm
13 Power of main motor 37 kw
Rotating Speed 1470 r/min
14 Power of feed motor 1.3/1.7 kw
Rotating Speed 940/1440 r/min
15 Machine weight(Approx) 19.5 t
16 Overall dimensions(L ×W×H) 3450x3430x4100 mm
Company Contact:
- Phone: +86-317-5202090
- Address: No. 01, Shengyong Road, Matou Industrial Zone,Fucheng County, Hengshui City,Hebei Province,China, Hengshui City, Hebei Province, China
- Email:
Published date: July 21, 2016
- Business Description: Hengshui Shengyong Heavy-duty Machine Tool Manufacturing Co., Ltd specializes in the manufactures and sells of metalworking machines: CNC lathe machine, vertical lathe machine , Heavy duty horizontal lathe machine, Gantry milling machine, Gantry Planer Milling Machine, Roll turning lathe, Floor type boring lathe etc.
If interested, please feel free to contact us.
