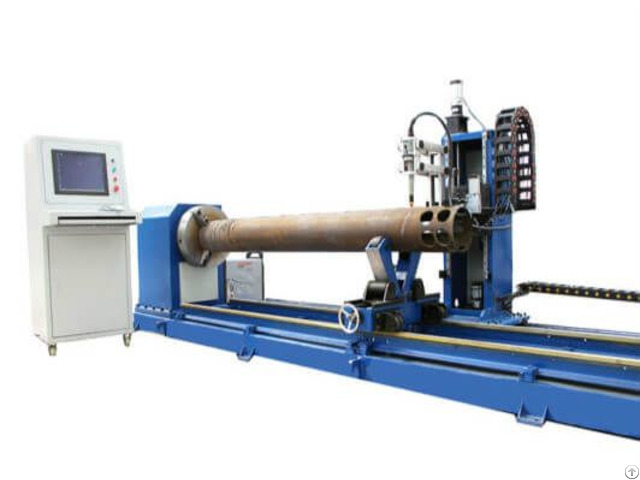

Five Axis Cnc Plasma Pipe Bevel Cutting Machine For Sale - China

5 Axis CNC Plasma Pipe Bevel Cutting Machine For Sale Features

1 - Professional control system for various types of cuts, including tees, miters, saddles, centerline offsets, multiple intersections, elbow supports, gusset slots; round, rectangular, saw cut, overlapping pipe holes, re-pads with axial offsets and baseline or work point offsets, and other types of intersecting cuts.

2 - Precise casting parts and strict manufacture and test procedures ensure high accuracy, reliability, and durability.

3 - Integrated with specialized programming and computing modules for complicated large steel structure construction, it can generate CNC codes from Auto CAD drawings to save operators’ and engineers’ time.

And these modules are compatible with IGES, DXF, SAT and STL files.

4 - Automatic, servo driven height sensing system compensates vertical position for the out-of-round pipe.

In-feed and out-feed conveyors available for loading/unloading.

5.3D operating interface for easy operation.

6 - Six CNC axes(Left/Right, Front/Rear, Up/Down, Rotation, Torch-Twisting, Torch-lifting) perform cutting pipe profile.

Techncial parameters

Item Specification

pipe diameter Φ50～Φ300 mm

pipe length 6 m(can be customized)

Work-piece ellipse ≤2%

Number of control axes 5 axes

Torch lift stroke max.

300 mm

Cutting speed 10-2000 mm/min

Moving speed 10-6000 mm/min

Axial swing angel of cutting torch α=±45°

radial swing angel of cutting torch β=±45°

Plasma cutting thickness Upon actual plasma source

Positioning accuracy ±0.2mm

Ambient temperature -10 º C ~ 45 º C

Ambient Humidity less than 95%, no condensation.

Power supply 380VAC, 50Hz, fluctuation is less than ± 10%
