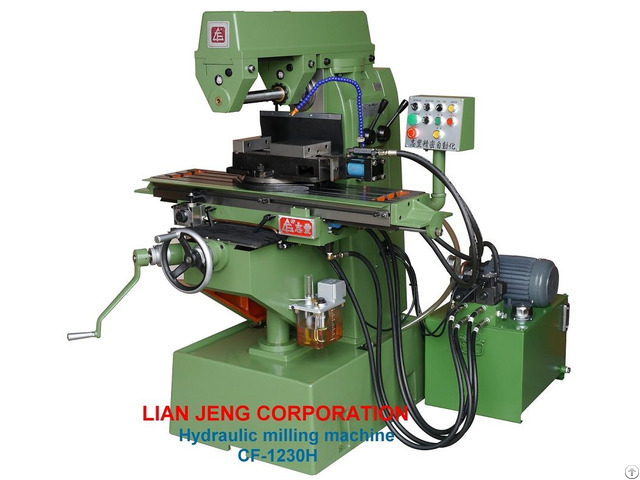

Hydraulic Milling Machine Lian Jeng - Taiwan
price: contact company for price
Table Working surface(length × width) 1000×230mm Table travel(x/y/z) 500×230×385mm T-slots 16mm×3 Horizontal Spindle Spindle nose N.T.#40 Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz) 40, 100, 170, 260, 390, 980(50Hz) Distance from spindle center to table top 0-470mm Distance from spindle center to ram bottom 115mm Motors For horizontal spindle 1.5KW(2HP)-4P For table feed 1.5KW(2HP)-4P For cutting fluid pump 0.1KW(1/8HP)-4P Size of machine Net weight 1, 000kg Dimensions of packing case 1150×1150×1670mm
Company Contact:
- Posted By: LIAN JENG CORPORATION
- Phone: +886425625559
- Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan
- Email:
Published date: December 19, 2017
- Business Description: hydraulic milling machine
vertical milling machine
universal milling machine
turret milling machine
vertical horizontal milling machine
Related listings
-
Vertical Turret Milling Machine Lian Jeng CorpMetal cutting machinery - LIAN JENG CORPORATION - Taiwan - December 19, 2017 - contact company for priceTable Working surface(length*Width) 760x180mm Traveling (X / Y / Z) 480x200x350mm T-Slots 16mmx3 VERTICAL SPINDLE Spindle nose N.T.#30 Spindle speeds (R.P.M.) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz) 150, 300, 500, 750, 1000, 1160...
-
Vertical Horizontal Milling Machine Cf G1a Lian Jeng CorpMetal cutting machinery - LIAN JENG CORPORATION - Taiwan - December 19, 2017 - contact company for priceModels (CF-G1A) Table Working surface(length × width) 1000×230mm Table travel(x/y/z) 580×230×385mm T-slots 16mm×3 Vertical Spindle Spindle nose N.T.#40 Spindle speed(8 steps)R.P.M 210, 420, 690, 980, 1380, 1720, 1960, 3440(60Hz) 170, 340, 570, 810, 1...
-
Horizontal Milling Machine Cf H1 Lian Jeng CorpMetal cutting machinery - LIAN JENG CORPORATION - Taiwan - December 19, 2017 - contact company for priceModels (CF-H1) Table Working surface(length × width) 1000×230mm Table travel(x/y/z) 580×230×385mm T-slots 16mm×3 Horizontal Spindle Spindle nose N.T.#40 Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz) 40, 100, 170, 260, 390, 980(50Hz) ...
