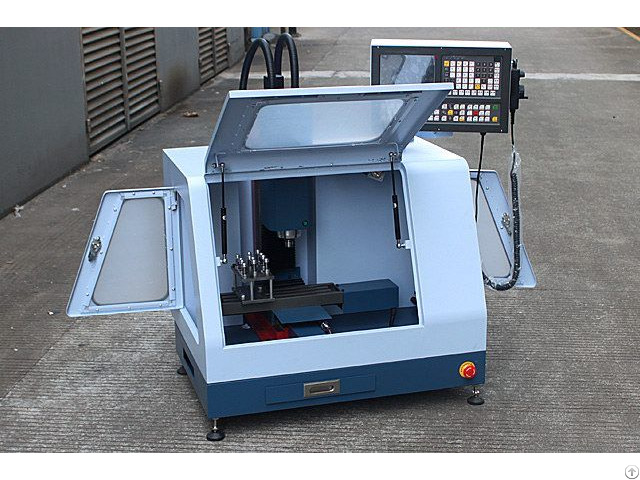

Mini Cnc Machine Center - China

Product No：VMC180

Product Name：Micor CNC Machine Center Features

(1).

High performance 3 axis CNC center machine controller.

(2).

The standard spec includes electronic hand wheel.

(3).

Selection of high -quality casting materials, more compact.

(4).

4 tools ATC.

ISO20 spindle type, 24000rpm spindle speed.

(5).

USB/U dis/RS232COM etc many kinds of communication mode, to help users achieve different data transmission and software upgrades easily.

(6).

Frequency conversion water cooling motor, low noise, high speed and good durability.

(7).

Perfect self diagnosis function, internal and external status real-time display, alarm immediately when abnormal.

(8).

Macro variable, macro definition programming, realizing a variety of logical relations.

Support macro program with parameters, convenient to the user programming.

(9).

DXF+G code template function, converting DXF automatically to G code for processing.

(10).

Teaching function: Teaching+ simplified instruction programming, teaching methods in table format, that is simple and intuitive.

(11).

Graphic simulation function: show the graphics of the processing program and the tool path of the actual operation, tool path simulation processing without controlling the operation of the machine, to exam if the preparation process is correct.

(12).

Multi interface selection: support multi language interface display, automatic fault alarm.

Processing information display, processing time, the number.

(13).

Parameter tabular: Input / output address number setting, only need to fill in the corresponding value in the configuration table.

(14).

Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.

Technical parameters

X axis travel 180mm

Y axis travel 110mm

Z axis travel 200mm

Spindle taper ISO 20

Tool number 4

Time of tool changing 10s

Pneumatic supply 0.6 MPa

Tool DIA.

range 1-10mm

Control system 3 axis CNC center machine controller

Instruction DXF+G code template function, converting DXF automatically to G code for processing

MPG hand wheel 4 axis

Spindle motor 2.2kw

Spindle speed 100-24000r/min

The max moving speed 2000mm/min

The max feeding speed 500mm/min

Power of X/Y/Z 2.2Nm

Positioning accuracy 0.03mm

Repeatability accuracy 0.02mm

Transmission ball screw

Table size 400*110mm

T slot (amount*width) 3*12mm

Max.

load 20kg

Table structure Full cast iron

Power 230/120V

Overall dimension 850*670*1000mm

Packing size 950*680*1100mm
