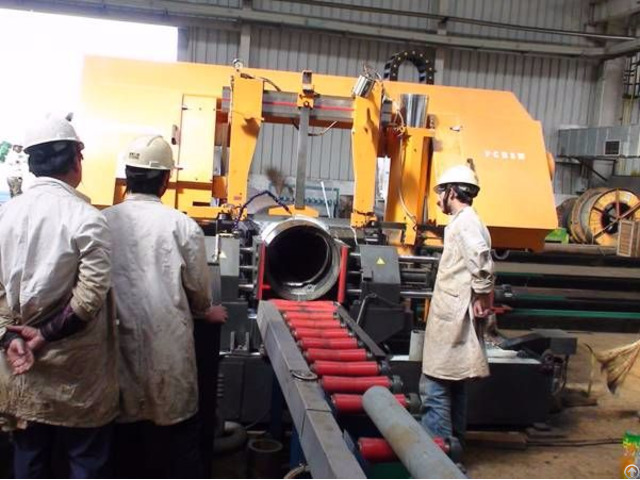

Pipe Prefabrication Band Saw Cutting Machine - China

-High Speed Pipe Cutting Band Saw Machine

Model: PCBSM-16Aa /PCBSM-24Aa/PCBSM-32Aa


Performance features

On-line Performance: good (designed as per the one line equipment of the production line)

Cutting efficiency: ≤2Min /one pipeline bevel (DN200 SCH40);

Opening quality: good

Application Range: Used for projects with a majority of standard wall thickness & heavy wall thickness

Technical parameters

Structure: horizontal and with two columns, made special roller

Pipe diameter applicable: DN50-400(φ60-426)/DN50-6 00(φ60-610); DN150-800(φ159-813)mm


Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

Feeding speed: stepless speed adjustment

Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.

Band saw tension: tensioning & loosen automatically by hydraulic

Cooling system: Built in coolant pump

Speed of the band saw: 18, 42 or 68 m/min /27, 52 or 78 m/min/15-80m/min

Size of the band saw: 4570X*34*1.1 /6700X*41*1.3/8880*67*1.6

Dimension of machine: 2300*1200*1650mm;3600*145 0*2100mm; 4550*1950*2600mm

Weight of machine: 1500KGS;5000KGS ;9000KGS (±5%)

Length-measuring system: a mechanical Length-measuring system could be provided if necessary so as to fix the length of the pipes as well as cut and bevel them with the supporting of the band saw conveying system.

Conveying system: Cutting and beveling VF band systems driven by motor are equipped if necessary.
