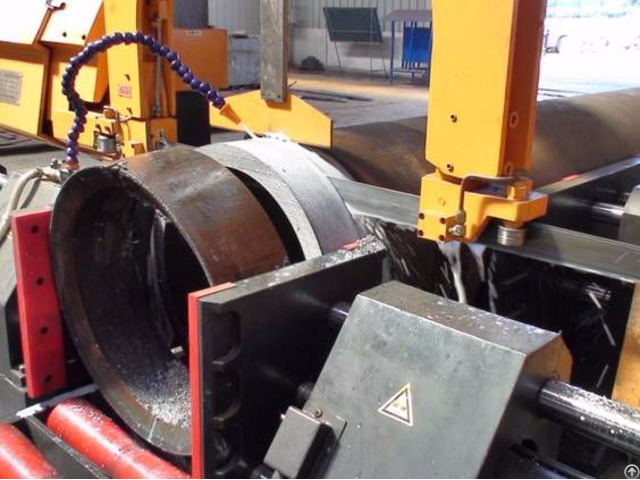

Pipe Prefabrication Cnc Cutting Machine - China

-Numerical Control Pipe Cutting Band Saw Machine

Model: PCBSM-24Ba;PCBSM-32Ba

Performance features

On-line Performance: good (designed as per the one line equipment of the production line)

Cutting efficiency: ≤2Min /pipeline bevel (DN200 SCH80);

Opening quality: good

Application Range: Used for projects with a majority of heavy wall thickness & standard wall thickness pipes

Technical parameters

Structure: horizontal, with one main column+ one auxiliary column

Pipe diameter applicable: DN50-600(φ60-610); DN150-800(φ159-813)mm


Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel

Feeding speed: stepless speed adjustment

Clamping mode: Both sides centering clamping automatically by hydraulic cylinder.

Band saw tension: tensioning & loosen automatically by hydraulic

Cooling system: Built in coolant pump

Speed of the band saw: 17-85m/min speed control by frequency variation

Size of the band saw: 7400*54*1.6; 8050*67*1.6mm

Dimension of machine: 3750*2300*210mm; 3925*1660*2320mm

Weight of machine: 5000KGS;7500KGS (±5%)

Length-measuring system: a mechanical Length-measuring system could be provided so as to automatically measure the length of the pipes as well as cut them with the supporting of the band saw conveying system.

Measuring Length：1m /once

Control System：PLC Controlling.

Conveying system: Cutting and beveling VF band saw conveying systems driven by motor are equipped if necessary.
