Shsinopower Com Sheet Metal Slitter Machine - China

shsinopower.

com- sheet metal slitter machine

Coil thickness: 1.0-6.0mm

Coil width: 500-2200mm

Productin speed: 20-100m/min

Pipe material: HR, CR, PPGI, GI, AL, CU, et

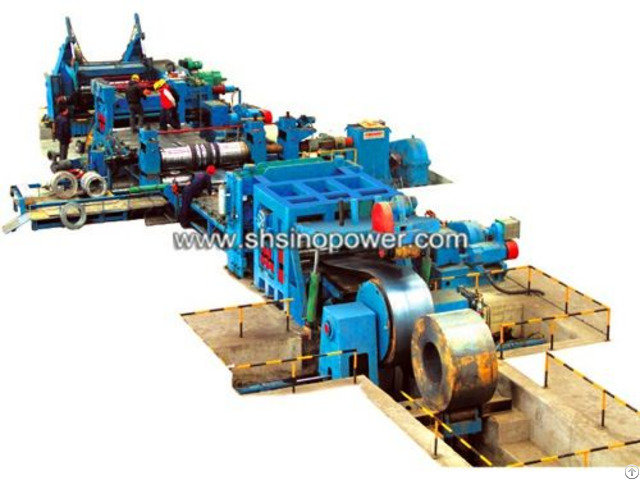

SP(1-6) sheet metal slitter machine for sales is applicable to coils of various specifications.

It is used for slitting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling.

It has advantages such as proper layout, easy operation, highly automated and high production efficiency.

1 - Technical Parameters of metal slitter

Model Thickness Coil Width Coil Weight Line Speed Coil Material

mm mm tons m/min

SP(0.2-2) 0.3-2.0 400-1600 ≤20 0~150 δs≤230N/2, Cold-rolled Coil, Hot-rolled Coil, Stainless Coil, Galvanized Coil, Aluminum Coil, Copper Coil, etc

SP(0.3-3) 0.3-3.0 400-1600 ≤20 0~120

SP(0.4-4) 0.4-4 500-2200 ≤25 0~100

SP(1-6) 1-6 500-2200 ≤25 0-80

SP(1-8) 2-8 500-2200 ≤25 0-60

SP(2-10) 2-10 500-2200 ≤35 0-60

SP(2-12) 2-12 500-2200 ≤35 0-40

SP(3-16) 3-16 500-2300 ≤35 0-40

SP(5-20) 5-20 500-2300 ≤35 0-20 2 - Process Flow of metal slitter machine

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control Please Visit our web site for more details or get offers from our email: SINO POWER INDUSTRIAL CO., LIMITED -shsinopower.
