Small Surface Grinding Machine Cf 612b - Taiwan

price: 1.00 Dollar US$

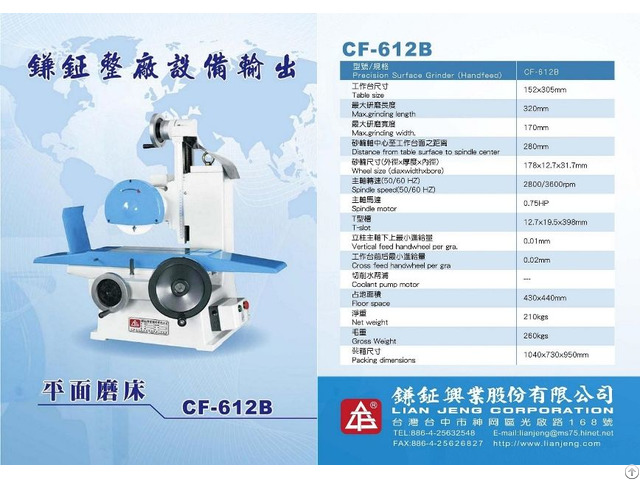

Small Surface Grinding Machine Cf 612b

Products Photos Catalog Surface Grinding Photos Catalog

Models (CF-612B)

Table

Table size 152×305mm

Max.

grinding length 320mm

max.

grinding width 170mm

Distace from table surface to spindle center 280mm

Wheel size(dea×width×bore) 178×12.7×31.7mm

Spindle speed(50/60Hz) 2800/3600rpm

Spindle motor 0.75HP

T-slot 12.7×19.5×398mm

Vertical feed handwheel per gra.

0.01mm

Cross feed handwheel per gra 0.02mm

Coolant pump motor --

Floor space 430×440mm

Net weight 210kgs

Gross Weight 260kgs

Packing dimensions 1040×730×950
