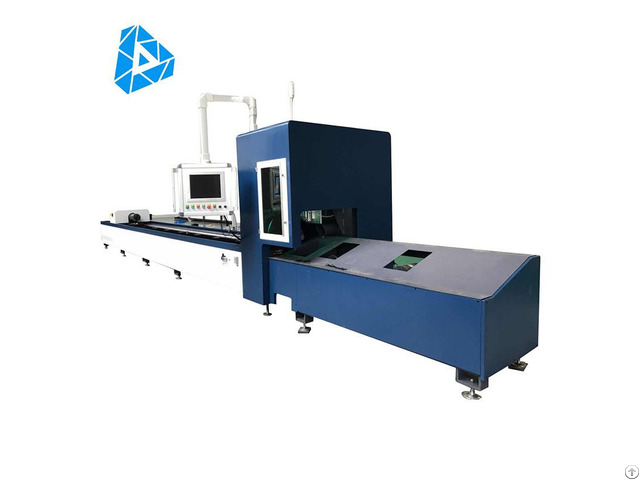

Strict Standard Metal Tube Laser Cutting Machine - China

Strict Standard Metal Tube laser cutting machine

Cypcut control, Cypcut nest, Cypcut Chuck, 2- pipe chuck system, 3-pipe chuck system both available.

Use Qianlian Chuck Square Tube Fiber Laser Cutting Machine

1).

Lower inertia and faster response characteristics

2).

Good gear transmission performance leads to high precision, increased lubrication will improve wear resistance

3).

Good braking performance and high stability will make the motor curve more stable

4).

Easy installation

Automatic Loading and Unloading Device Tube Fiber Laser Cutting Machine

① EtherCAT technology for future system expanding.

② Greatly improve production efficiency.

Auto feeding system Application field

Round tube: Φ20mm-Φ200mm

Square tube: 20mm×20mm-200mm×200mm

Tube length: 4000--6000mm

TubePro System Square Tube Laser Cutting Machine

Cytting machine use Cypcut.

TubePro system series was developed by Shanghai Baichu Electronics Co., Ltd. It is a software specially used for laser cutting of metal steel tubes.

The software has high precision and high efficiency.

CypTube is a control system for 3D steel tube laser cutting.

Wuxi Qiaolian CNC Welding&Cutting Machine Co., Ltd is a branch of Qiaolian Group, professional in CNC machine R&D, production, especially for high precision machine like fiber laser cutting machine, HD plasma cutting machine, Robot welding machineetc.

Our reputation in this field is long-life of machine, more and more old customers come back for new business after used our machine for some years, as they have seen the stability of our machine same as Germany, USA brand.

Machine Specification

Item Specification

Max pipe length(mm) 6000

Max round pipe diameter(mm) 220

Minmum round pipe diameter(mm) 20

Max square pipe diameter(mm) 150X150

Minimum square pipe diameter (mm) 20X20

Minimum pipe thickness(mm) 1

Max pipe thickness(mm) 10

Effective stroke X(mm) 6050 Y(mm) 100 Z(mm) 200 W(°) 360

Position accuracy X(mm) ±0.10 Y(mm) ±0.05 W(°) ±0.02 Z(mm) ±0.01

Repeat accuracy X(mm) ±0.08 Y(mm) ±0.03 Z(mm) ±0.005 W(°) ±0.01

Max position speed X(m/min) 70 Y(m/min) 70 Z(m/min) 35 W(n/min) 100

Complete machine power consumption(Kwh) 27.5

Complete machine weight (T) 7.9

Dimention: L×W×H(mm) 8230×1580×1500
