Taiwan Hydraulic Milling Machine 1230h - Taiwan

price: 1.00 Dollar US$

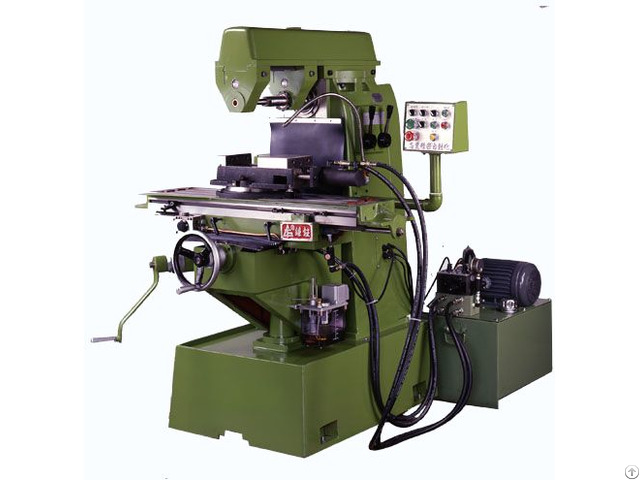

Taiwan Hydraulic Milling Machine 1230h

Products Photos Catalog Taiwan Hydraulic Photos Catalog

Models (CF-1230H)

Table

Working surface(length × width) 1000×230mm

Table travel(x/y/z) 500×230×385mm

T-slots 16mm×3

Horizontal Spindle

Spindle nose N.T.#40

Spindle speed(6 steps)R.P.M 50, 120, 210, 320, 470, 1180(60Hz)

40, 100, 170, 260, 390, 980(50Hz)

Distance from spindle center to table top 0-470mm

Distance from spindle center to ram bottom 115mm

Motors

For horizontal spindle 1.5KW(2HP)-4P

For table feed 1.5KW(2HP)-4P

For cutting fluid pump 0.1KW(1/8HP)-4P

Size of machine

Net weight 1, 000kg

Dimensions of packing case 1150×1150×1670mm


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email

Published date: September 6, 2016 - Modified date: September 6, 2016

  • Business Description: hydraulic milling machine
