Taiwan Small Vertical Milling Machine - Taiwan

price: 1.00 Dollar US$

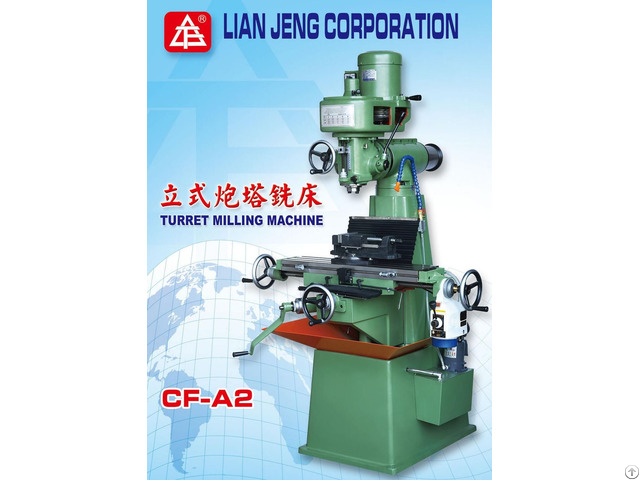

Taiwan Small Vertical Milling Machine

Products Photos Catalog Taiwan Vertical Photos Catalog

Models (CF-A2)

Table

Working surface(length*Width) 760x180mm

Traveling (X / Y / Z) 480x200x350mm

T-Slots 16mmx3

VERTICAL SPINDLE

Spindle nose N.T.#30

Spindle speeds (R.P.M.

) 180, 360, 600, 900, 1200, 1400, 1590, 1800, 2800, 3180(60Hz)

150, 300, 500, 750, 1000, 1160, 1320, 1500, 2330, 2650(50Hz)

Distance from spindle end to table top 50-350mm

Vertical travel of quill 80mm

Swiveling angle of head(right & left) 90°

Cross travel of ram 180mm

Horizontal rotation angle or ram 360°

Motors

For vertical spindle 0.75KW(1HP)-4P/8P

For table feed(optional) 0.1KW(1HP)-4P

For cutting fluid pump 0.1KW(1/8HP)-4P

Size

Net weight(approx.

) 500kg

Dimensions of packing case 1300x1300x1600mm


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email

Published date: September 6, 2016

  • Business Description: hydraulic milling machine

    vertical milling machine

    universal milling machine

    turret milling machine

    vertical horizontal milling machine
