Textile Streching Heat Setting Stenter Machine Stonge Rail Plaiting Batching Fabric Exit - China
price: check with company for price

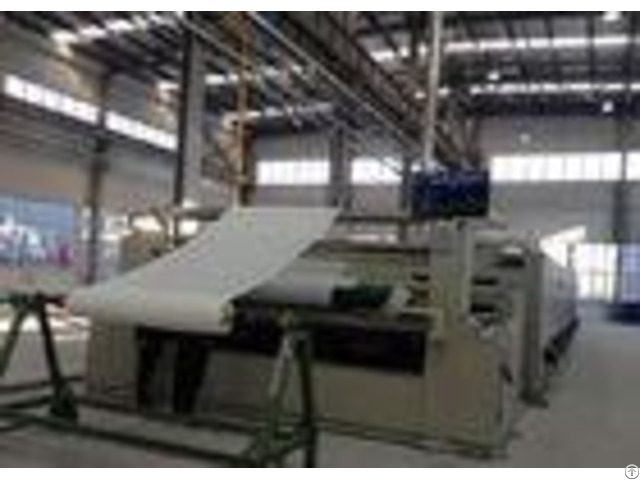

Fabric streching & setting stenter, Temperature even, Good thermal insulation 1 - Working chart: Open width entry --- Infrared center device J-Scray Padder with various tension applicator --- Weft straightner Screw expanding & overfeeding device --- Edge Photocell & uncurler device --- Pinning-on Chambers for heat setting ---Air-jet cooling --- Pinning-off End section --- Plaiting.
2 - Functions of stenter machine: 1) Heat setting is done by the stenter for special 3-mesh textile.
2) Width of the 3-mesh textile is controlled.
3) Moisture of the 3-mesh textile is controlled.
4) GSM of the3-mesh textile is controlled.
5) Fabric is dried by the stentering process.
6) Shrinkage property of the 3-mesh textile is controlled.
3 - Stenter Chamber features: Each chamber 3 meters long, with twin air system, the frame of chamber is made from 4 mm steel plates.
The heat- insulating boards thickness is 120mm, filled with insulating material and silicone rubber strips used for sealing.
The bottom of the chambers heat-insulating boards thickness 80mm.
Double filter: Each chamber has double filters; its easier for machine maintenance.
Company Contact:
- Phone: 86-731-88051998
- Address: Virock Road 8, Wangcheng economy & technology development zone, Changsha, Hunan, China, Changsha , Hunan , China
- Email:
Published date: March 27, 2018
- Business Description: Founded in 1990, the VIROCK Group is a professional provider of textile machinery, storage equipment and general trade solutions.
The Group provides research, development, production, sales, engineering and service of textile equipment and storage equipment.
