Tgs 1500x3000 Table Type Cnc Plasma Cutting Machine - China

price: 500000.00 Dollar US$

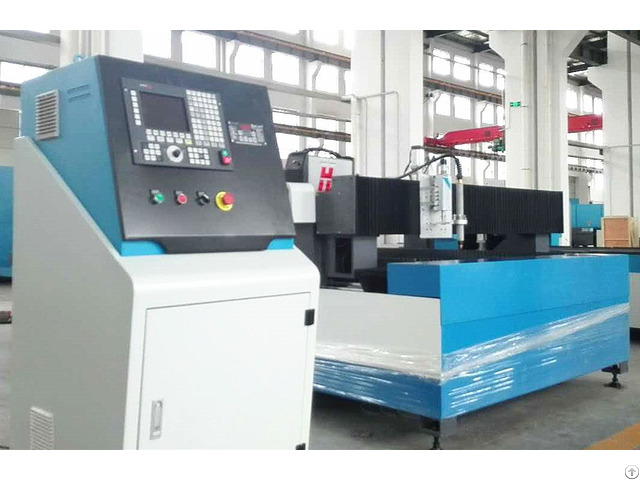

Tgs 1500x3000 Table Type Cnc Plasma Cutting Machine

Products Photos Catalog Tgs 1500x3000 Table Photos Catalog

CNC table type cutting machine is high speed, high accuracy plasma cutting machine which features compact modular construction for convenient and simple installation low inertia, and maneuverability, especially suitable for thin plate cutting.

The cutting table of CNC cutting machine can be designed as fume extraction working bench or underwater cutting bench according to customer's demand, which can effectively solve the environmental Problem produced by plasma cutting.

Max length of steel plate 3000mm

● Max width of steel plate 1500mm

● Plasma cutting torch 1group

● Auto height sensor 1group

● Cutting speed 1000-6000mm/min

● Max moving speed 6000mm/min

● Repetition precision ±0.3mm

● Thickness Max.

12mm

● CNC system: Beijing Starfire SF-2300H

● Power 3～380±10%, 50HZ±1HZ

● dimension 3750*2150*1800mm


Company Contact:


  • Phone: +8618721012517

  • Address: Industry Garden Donghu,Donghu Town ,Wuxi City , Jiangsu ,China, Wuxi , Jiangsu , China

  • Email: Email


Published date: April 18, 2019

  • Business Description: China Zhouxiang Group is established in 1991, covers an area of more than 100, 000m2, fixed assets CNY200 million, with more than 400 staff, including 100 resreacher, 20 Doctor and Master, and several domestic and foreign industry experts and returnees staff.

    Zhouxiang is a high-tech enterprise which combines science and technology, industry production and trade into one, took the lead in the adoption of ISO9001: 2008 quality management system certification, CE certification, etc.

    The company is located in Wuxi, the key city of the Yangtze River Delta, which is adjacent to Shanghai and has a unique transport, production and sales advantage.

    Our products mainly include H beam welding line, CNC cutting machine, H beam assembly machine, H beam welding machine, H beam straightening machine, Box beam production line, Welding manipulator, Welding rotator, Welding Positioner, Edge milling machine, CNC drilling machine, Plate rolling machine, etc.

    It is one of the biggest professional production bases for h beam line in China.

    These products are widely used on ship/car building, marine engineering, military machinery, engineering machinery, chemical machinery, petrochemical equipment, environmental protection equipment, power tower, wind tower, nuclear power, boiler, building and steel structure.
