Vertical Horizontal Milling Machine Cf 2570 - Taiwan

price: 1.00 Dollar US$

Vertical Horizontal Milling Machine Cf 2570

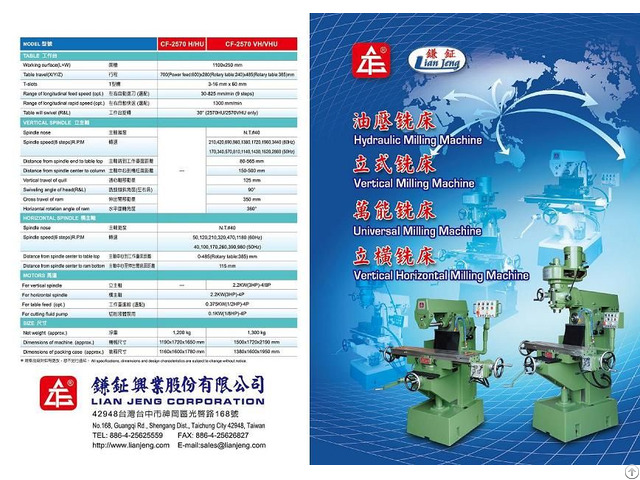

Products Photos Catalog Vertical Horizontal Photos Catalog

Models (CF-2570VH/VHU)

Table

Working surface of table 250mm×1100mm

Longitudinal travel 700mm

Transfer travel 280mm

Vertical travel 485mm

Range of longitudinal feed speed(mm) 30~825mm/min (9Steps)

Range of longitudinal rapid speed(mm) 1300mm/min

Table will swivel(R & L) 30°

Vertical Spindle

Spindle nose N.T.#40

Spindle speed(8 steps)R.P.M 210-3440(60Hz) 170-2860(50Hz)

Distance from spindle end to table top 80-565mm

Distance from spindle center to column 150-500mm

Vertical travel of quill surface 125mm

Swiveling angle of head(right & left) 90°

Cross travel of ram 350mm

Horizontal rotation angle or ram 360°

Horizontal main spindle

Range of spindle speeds(6 speeds)(R.P.M) 60c/s(50~1180)50c/s(40~98 0)

Taper of spindle bore NT40#

Spindle center to table 0~485mm

Spindle center to over arm bottom 115mm


Company Contact:


  • Phone: +886425625559

  • Address: No. 168, Guangqi Rd., Shengang Dist., Taichung City. , Taiwan

  • Email: Email

Published date: September 6, 2016

  • Business Description: hydraulic milling machine

    vertical milling machine

    universal milling machine

    turret milling machine

    vertical horizontal milling machine
