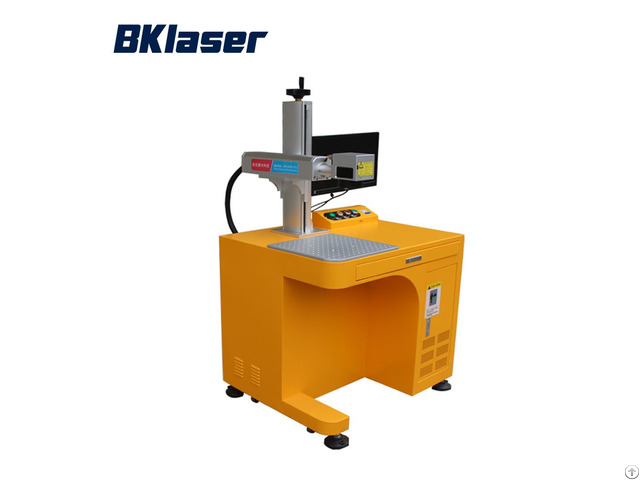

20w Desktop Optical Mopa Fiber Color Laser Marking Machine For Jewelry - China

Technical parameters: MoCnc Mopa Laser Marking Machinedel BK-M20C1/BK-M30C1

Laser Power 20W/30W

Work Accuracy 0.001mm

Laser Wavelength 1064nm

Repeat Frequency 20-80KHZ

Engraving Line Speed ≤7000mm/s

Minimum Line Width 0.012mm

Minimum Character 0.2mm

Operating System Windows Systems

Standard Engraving Range 110*110mm/160*160mm

Engraving Depth 0-0.5mm

Instructions Video instructions& instructions book

Warranty 12 Months

Support graphic format AL, BMP, DST, DWG, DXF, DXP, PLT CNC YES Characteristics:

1 - The equipment brand fiber laser, small spot and more concentrated energy needs, can handle a

wide variety of materials and complex marker.

The average life span of the laser machine is over

25000 hours, zero maintenance, and no other consumables such as water tank or laser tube.

2 - Meet in different depth and color marking metal, metal can deep carving (ELF), metal white, and

black anodized aluminum (high frequency).

3 - Pulse width adjustable fiber laser, high power, pulse range: 4-60ns

4 - The machine is cooled by air cooling, and the energy consumption is low.

5 - The structure of the whole machine is simplified, and the key parts are all imported.

6 - The optical system adopts a fully sealed structure with a red light preview function, the

appearance is more beautiful, and the operation is more convenient.

7 - The photoelectric conversion efficiency is high, the beam quality is high, the line is fine, and the

light spot is small.

8 - The environment adaptability is strong, it can work continuously under normal conditions such as

vibration, impact, dust and humidity.

It is easy to achieve coupling with optical fiber and can achieve

long distance work.

9 - It can mark bar code, two-dimensional code, regular and irregular serial number.

Mark can also

be logo graphics and text of any information, has the characteristics of marking pattern fine

beautiful, never wear.

10 - The software runs on the WINDOWS platform, the Chinese / English interface, and it can be

compatible with AUTOCAD, CORELDRAW, PHOTOSHOP and other software file formats, such as

PLT, PCW, DXF, BMP, etc., and it can also use SHX and TTF font library directly.
